Product Details:
Payment & Shipping Terms:
|
Display: | Text, Pics,video | Cabinet Materials: | Steel Aluminum |
---|---|---|---|
IP: | IP65 | Led Chip: | Nichia, Cree, Epistar |
IC: | MBI5124 | Brightness: | 6500nits |
Color: | White, Black | Weight: | 55kg Per Sqm |
Application: | Building, Street, School | LED: | DIP346 Or SMD3535 |
Panel Size: | 960*960mm Or Customized | Module Size: | 160*160mm 320*160mm |

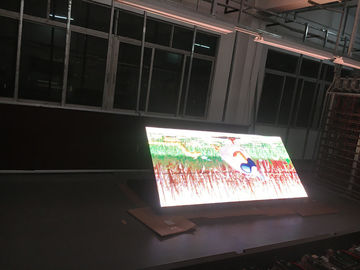

Waterproof outdoor led video screen used on building led pole screen for advertising
P10 specifications:
Pixel/SQM :10000Pixel/m²
LED Lamp LED TYPE :SMD3535
Chip Brand :EPISTAR
Module Module Resolution :32Pixel * 16Pixel
Scanning Method: 1/4 Scanning
Module Dimension :320mm(Width)x160mm(Height)
Drive IC :MBI5020
Refresh Rate >2400HZ
Cabinet Cabinet Thickness :150mm
Cabinet Construction: 960*960mm/ 960*800mm /640*640mm
Cabinet Dimension: 960X960X150mm
Power Supply :110V/220
LED Screen Viewing Angle Horizontal : 110±10°Vertical: 60±10°
Brightness >7000cd/m²
Best Viewing Distance :10~100m
LED Life:100,000Hours
P10 Waterproof outdoor led video screen can be hanging, Stacking, Installation into the wall and so on. Also It can be designed as front open, front access screens to make the maintanance easy.
Full color P10 outdoor led video screens can satisfy all kinds of demands of outdoor commercial digital media. And it is hotseller in past few years. Also new ideas are used onto it like AR, Interactive....
P10 Outdoor LED Display
ITEM | P10 |
Pixel Pitch(㎜) | 10 |
Pixel Density(pixel/㎡) | 10000 |
Pixel Component | 1R1G1B |
LED Configuration | SMD3535 |
Panel Dimension(W×H)㎜ | 320*160 |
Scan Mode | 1/4 (or 1/2) |
Cabinet Dimension(W×H)㎜ | 960*960/Customized |
Cabinet Material | Iron/Customized |
Brightness(cd/㎡) | ≥6000 ( or ≥7000) |
Color Temperature | 3200K-9500K |
Viewing Angle(V) | 140° |
Viewing Angle(H) | 140° |
Contrast Ratio | 3000:1 |
Max Power Consumption(w/㎡) | 750 |
Ave Power Consumption(w/㎡) | 300 |
Operating Power Source | AC85~264V(47-63Hz) |
Frame Frequency(Frame/S) | 60 |
Refresh Rate(Hz) | ≥1200 |
Gray Level | RGB65536Grade |
Brightness Adjustment Level | 256Grade |
Brightness Adjustment Mode | Manual/Automatic/Programmable |
Control Distance | UTP<100m;Muti Mode Fiber<500m;Single Mode Fiber<10Km |
Operating Temp | ﹣20℃-﹢50℃ |
Operating Humidity | 10%-90%RH |
Protecting Rating | IP65 |
MTBF | >10000h |
LED Life Span | >100000h |
LED Best View distance | 8m-300m |
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
