Sport Live Stadium Led Display Perimeter Screen For Text Pictures Advertise

China Sport Live Stadium Led Display Perimeter Screen For Text Pictures Advertise supplier

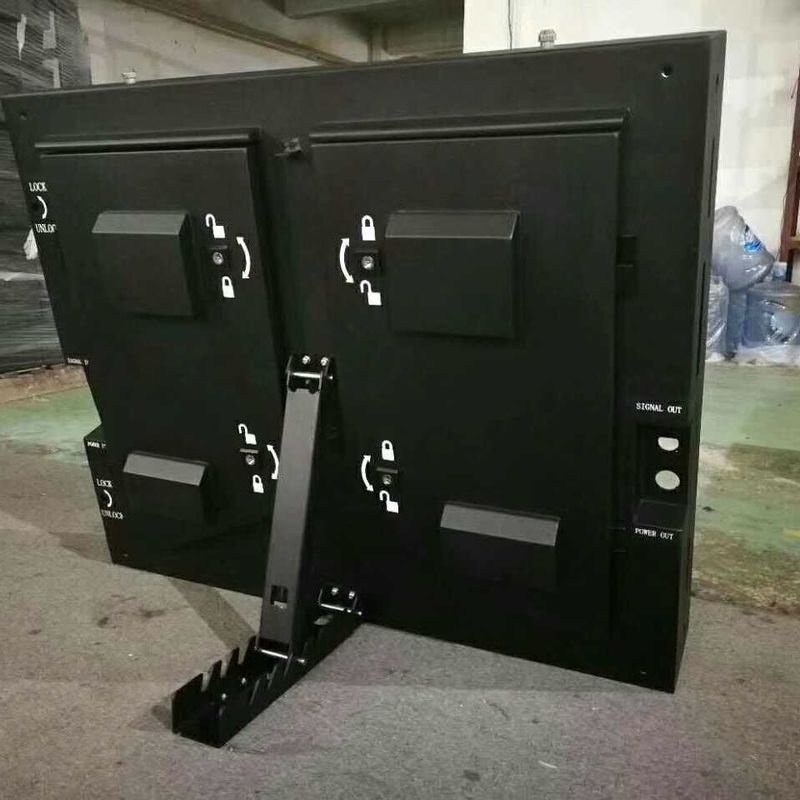

Large Image :  Sport Live Stadium Led Display Perimeter Screen For Text Pictures Advertise

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Zhongyi
Certification: CE / RoHS / FCC / ETL / TUV
Model Number: ZFO10

Payment & Shipping Terms:

Minimum Order Quantity: 1 squaremeter
Price: Negotiation
Packaging Details: Plywood cartons
Delivery Time: 15-18 days after received prepayment
Payment Terms: 30% T/T prepayment, 70% T/T balance before shipment
Supply Ability: 3000 squaremeters per months
Contact Now
Detailed Product Description
LED Chip: Epistar IC: MBI5124
Brightness: >6000nits Signal: Hot Back-up
PCB: 1.6mm Thickness 4 Layers Cabinet Materials: Steel Or Aluminum
Connnector: Seetronic Or Neutrik Or Cn-Link Control System: Nova Or Linsn Or Colorlight
Cabinet Size: Customized 1280mm 960mm 800mm 640mm Support: Text, Pics
Warranty: 2 Years Or Longer Main Power Cable: 2.5 Or 4 Square Millimeter
Support Distance: CAT5 Within 100m / Fiber >100m Control: By Computer Synchronous

Sport live stadium led display led perimeter screen used for Text, pictures



Quick introduction:

Super slim---high-strength,more slim than aluminum in the design,thiner around 30%
Fast cooling---excellent heat dissipation perormance to protet the modular circuit
Anti-interference---special anti electromagnetic interference function
High strength



Sports are more and more poular in recent years and stadium led display is the main advertising media when exciting games going on.The effect of advertising on live stadium led display is much better than other advertising media




Specification:
Easy assembly/disassembly,Far viewing distance,Custom sizes,Meet sever weather,Support multi data format ,HD security cameras,Wireless control etc.

1. High impact-resistance: Silicon rubber mask of tile can absorb the impact from balls or players.

2. New design mask. The mask of display is of soft, toughness and high strength, achieving strong impact-resistant ability

3. Support degree is adjustable . The supporting stand can be adjusted between 75 to 90 degrees

4. Technology back-up. Dual-system and hot swap backup mechanism, improving the reliability of system greatly.

5. Meet all kinds of inclement weather of outdoor environment.antisepsis, waterproof, moisture-proof, antisnow. bear very low and hot temperature(-25ºC--+85ºC)

6. Multiform language editions, such as English, French, Germany, Greek, Russian and so on.

7. Can be connected with PC and the website, and also can be controlled remotely via wireless controller (it depend on the size of led display).



Currently P10 stadium led displya is the most popular in outdoor digital media application. It has advantages like customized display sizes, high definition, friendly user interface and multi-functional control methods. .



Advantages:
No ghosting,no mosaic
Angle adjustable
High refresh, High brightness
Multi-functional use for Stadium, rental, fixed installation
Wide viewing angle
Hot back-up --no signal failable
Rubber roof to protect players




P10 Outdoor LED Display

ITEM Ph10mm
IC MBI5124
Pixel Density(pixel/㎡) 10000
Led Chip Epistar
LED Configuration SMD3535
Panel Dimension(W×H)㎜ 320*160
Scan Mode 1/4 (or 1/2)
Cabinet Dimension(W×H)㎜ 960*960mm
Cabinet Material Iron/Customized
Brightness(cd/㎡) ≥6000 ( or ≥7000)
Color Temperature 3200K-9500K
Viewing Angle(V) 140°
Viewing Angle(H) 140°
Contrast Ratio 3000:1
Max Power Consumption(w/㎡) 750
Ave Power Consumption(w/㎡) 300
Operating Power Source AC85~264V(47-63Hz)
Frame Frequency(Frame/S) 60
Refresh Rate(Hz) ≥2000
Gray Level RGB65536Grade
Brightness Adjustment Level 256Grade
Brightness Adjustment Mode Manual/Automatic/Programmable
Control Distance UTP<100m;Muti Mode Fiber<500m;Single Mode Fiber<10Km
Operating Temp ﹣20℃-﹢50℃
Operating Humidity 10%-90%RH
Protecting Rating IP65
MTBF >10000h
LED Life Span >100000h
LED Best View distance 8m-300m






Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.


In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.


After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
