| Lamp: | SMD3535 Nationstar | Support Distance: | Within 100m (CAT5) Beyond 100m (Fiber) |
|---|---|---|---|
| Brightness: | >6500nits | Signal: | Hot Back-up |
| PCB: | 1.6mm Thickness 4 Layers | Cabinet Materials: | Aluminum |
| Connnector: | Seetronic Cn-Link | Control System: | Nova |
| Cabinet Size: | Customized 1280mm 960mm 800mm 640mm | Support: | Text, Pics |
| Application: | Football, Soccer, Basketball Volleyball Games | Main Power Cable: | 2.5 Or 4 Square Millimeter |
| Control: | By Computer Synchronous |

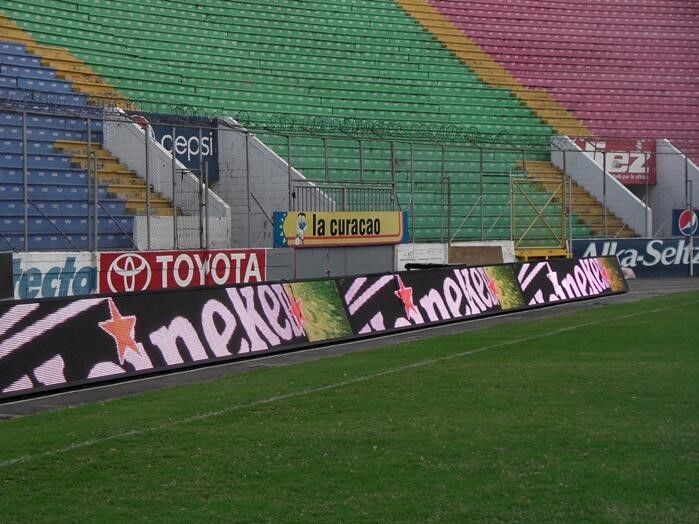

Soccer Game Dynamic Stadium Perimeter led display Vertical Scrolling Energy Saving
Quick introduction:
Sports are more and more poular in recent years and stadium led display is the main advertising media when exciting games going on.The effect of advertising on live stadium led display is much better than other advertising media
Currently P10 stadium led displya is the most popular in outdoor digital media application. It has advantages like customized display sizes, high definition, friendly user interface and multi-functional control methods. .
P10 Outdoor LED Display
| Pixel pitch | 10mm |
| IC | MBI5124 |
| Pixel Density(pixel/㎡) | 10000 |
| Power supplier | Meanwell |
| LED Configuration | SMD3535 |
| Panel Dimension(W×H)㎜ | 320*160 |
| Scan Mode | 1/2 |
| Cabinet Dimension(W×H)㎜ | 960*960mm |
| Cabinet Material | Aluminum |
| Brightness(cd/㎡) | ≥6000 ( or ≥7000) |
| Color Temperature | 3200K-9500K |
| Viewing Angle(V) | 140° |
| Viewing Angle(H) | 140° |
| Contrast Ratio | 3000:1 |
| Max Power Consumption(w/㎡) | 750 |
| Ave Power Consumption(w/㎡) | 300 |
| Operating Power Source | AC85~264V(47-63Hz) |
| Frame Frequency(Frame/S) | 60 |
| Refresh Rate(Hz) | ≥2000 |
| Gray Level | RGB65536Grade |
| Brightness Adjustment Level | 256Grade |
| Brightness Adjustment Mode | Manual/Automatic/Programmable |
| Control Distance | UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km |
| Operating Temp | ﹣20℃－﹢50℃ |
| Operating Humidity | 10%－90%RH |
| Protecting Rating | IP65 |
| MTBF | ＞10000h |
| LED Life Span | ＞100000h |
| LED Best View distance | ８m-３０0m |
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
