P10 RGB Stadium Perimeter Led Display , IP65 High brightness Led Stadium Display

China P10 RGB Stadium Perimeter Led Display , IP65 High brightness Led Stadium Display supplier

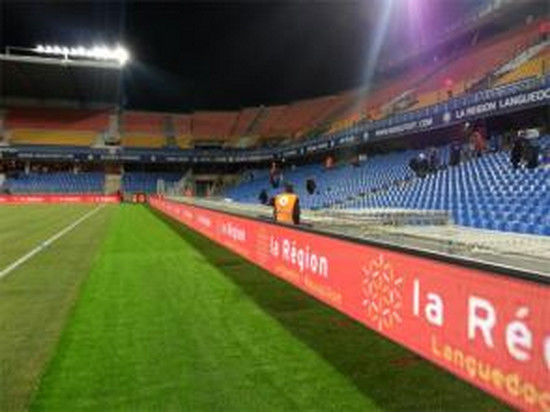

Large Image :  P10 RGB Stadium Perimeter Led Display , IP65 High brightness Led Stadium Display

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Zhongyi
Certification: CE / RoHS / FCC / ETL / TUV
Model Number: ZFO10

Payment & Shipping Terms:

Minimum Order Quantity: 1 squaremeter
Price: Negotiation
Packaging Details: Plywood cartons
Delivery Time: 15-18 days after received prepayment
Payment Terms: 30% T/T prepayment, 70% T/T balance before shipment
Supply Ability: 3000 squaremeters per months
Contact Now
Detailed Product Description
Lamp: DIP346 1R1G1B Power Supplier: Meanwell
Brightness: >6500nits High Refresh: 2880HZ
PCB: 1.6mm Thickness 4 Layers Cabinet Materials: Aluminum
Connnector: Seetronic Cn-Link Control System: Nova
Cabinet Size: Customized 1280mm 960mm 800mm 640mm Support: Text, Pics
Application: Football, Soccer, Basketball Volleyball Games Main Power Cable: 2.5 Or 4 Square Millimeter

P10 DIP346 RGB IP65 Stadium Perimeter Led Display Aluminum High brightness 1/4 scaning

Brief introduction:
High refresh, High brightness
Angle adjustable
No ghosting,no mosaic
Rubber roof to protect players
Stadium LED Display For Wolrd Cup Advertising , Super Clear Vision, With Large Viewing , lightweight
Anti-corrosion Anti-rust
Over power protection
Easy assembly/disassembly,Far viewing distance,Custom sizes,Meet sever weather,Support multi data format ,HD security cameras,Wireless control etc.

1. New design mask. The mask of display is of soft, toughness and high strength, achieving strong impact-resistant ability
2. High impact-resistance: Silicon rubber mask of tile can absorb the impact from balls or players.

3. Support degree is adjustable . The supporting stand can be adjusted between 75 to 90 degrees

4. Technology back-up. Dual-system and hot swap backup mechanism, improving the reliability of system greatly.

5. Meet all kinds of inclement weather of outdoor environment.antisepsis, waterproof, moisture-proof, antisnow. bear very low and hot temperature(-25ºC--+85ºC)

6. Multiform language editions, such as English, French, Germany, Greek, Russian and so on.

7. Can be connected with PC and the website, and also can be controlled remotely via wireless controller (it depend on the size of led display).

Quick introduction:

Super slim---high-strength,more slim than aluminum in the design,thiner around 30%
Fast cooling---excellent heat dissipation perormance to protet the modular circuit
Anti-interference---special anti electromagnetic interference function
High strength


Sports are more and more poular in recent years and stadium led display is the main advertising media when exciting games going on.The effect of advertising on live stadium led display is much better than other advertising media


Currently P10 stadium led displya is the most popular in outdoor digital media application. It has advantages like customized display sizes, high definition, friendly user interface and multi-functional control methods. .


Hot back-up --no signal failable
Multi-functional use for Stadium, rental, fixed installation
Wide viewing angle


P10 Outdoor LED Display

Pixel pitch 10mm
IC MBI5124
Pixel Density(pixel/㎡) 10000
Power supplier Meanwell
LED Configuration DIP346 full color
Panel Dimension(W×H)㎜ 320*160
Scan Mode  1/4
Cabinet Dimension(W×H)㎜ 960*960mm
Cabinet Material Aluminum
Brightness(cd/㎡) ≥6000 ( or ≥7000)
Color Temperature 3200K-9500K
Viewing Angle(V) 140°
Viewing Angle(H) 140°
Contrast Ratio 3000:1
Max Power Consumption(w/㎡) 750
Ave Power Consumption(w/㎡) 300
Operating Power Source AC85~264V(47-63Hz)
Frame Frequency(Frame/S) 60
Refresh Rate(Hz) ≥2000
Gray Level RGB65536Grade
Brightness Adjustment Level 256Grade
Brightness Adjustment Mode Manual/Automatic/Programmable
Control Distance UTP<100m;Muti Mode Fiber<500m;Single Mode Fiber<10Km
Operating Temp ﹣20℃-﹢50℃
Operating Humidity 10%-90%RH
Protecting Rating IP65
MTBF >10000h
LED Life Span >100000h
LED Best View distance 8m-300m



Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.

In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.

After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
