Product Details:
Payment & Shipping Terms:
|
Cabinet: | Aluminum | Maintenance: | Rear |
---|---|---|---|
Led Chip: | Epistar Silan | PCB: | 1.6mm Thickness 4 Layers |
Cabinet Materials: | Aluminum | Power Supplier: | Meanwell |
Control System: | Nova | Cabinet Size: | Customized |
Support: | Text, Pics | Application: | Football, Soccer, Basketball Volleyball Games |
Main Power Cable: | 2.5 Or 4 Square Millimeter | Control: | By Computer Synchronous |

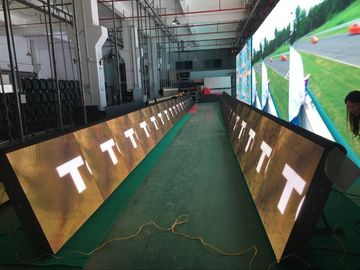

P16 DIP346 6500 nits 1024mm Outdoor Stadium Perimeter Led Display Rubber Roof Anti-corrosion
5V 40 A Power supplier CE
Wide viewing angle
Seetronics Connector Waterproof
Rubber roof to protect players
High refresh, High brightness
Angle adjustable
Multi-functional use for Stadium, rental, fixed installation
Quick introduction:
Brief introduction:
1. Can be connected with PC and the website, and also can be controlled remotely via wireless controller (it depend on the size of led display).
2. Multiform language editions, such as English, French, Germany, Greek, Russian and so on.
3. Over power protection Anti-corrosion Anti-rust
4. Support degree is adjustable . The supporting stand can be adjusted between 75 to 90 degrees
8. Technology back-up. Dual-system and hot swap backup mechanism, improving the reliability of system greatly.
Sports are more and more poular in recent years and stadium led display is the main advertising media when exciting games going on.The effect of advertising on live stadium led display is much better than other advertising media
Currently P16 stadium led displya is the most popular in outdoor digital media application. It has advantages like customized display sizes, high definition, friendly user interface and multi-functional control methods. .
P16 front maintenance Outdoor LED Display
Pixel pitch | 16mm 1R1G1B Full color |
Voltage | 5V 40 A |
Pixel Density(pixel/㎡) | 3906 |
Led lifetime | 10000 hours |
LED Configuration | SMD3535 Epistar |
Panel Dimension(W×H)㎜ | 256*256 |
Scan Mode | Static |
Cabinet Dimension(W×H)㎜ | 1024*1024mm |
Cabinet Material | Aluminum |
Brightness(cd/㎡) | ≥6000 ( or ≥7000) |
Color Temperature | 3200K-9500K |
Viewing Angle(V) | 140° |
Viewing Angle(H) | 140° |
Contrast Ratio | 3000:1 |
Max Power Consumption(w/㎡) | 750 |
Ave Power Consumption(w/㎡) | 300 |
Operating Power Source | AC85~264V(47-63Hz) |
Frame Frequency(Frame/S) | 60 |
Refresh Rate(Hz) | ≥4000HZ |
Gray Level | RGB65536Grade |
Brightness Adjustment Level | 256Grade |
Brightness Adjustment Mode | Manual/Automatic/Programmable |
Control Distance | UTP<100m;Muti Mode Fiber<500m;Single Mode Fiber<10Km |
Operating Temp | ﹣20℃-﹢50℃ |
Operating Humidity | 10%-90%RH |
Protecting Rating | IP65 |
MTBF | >10000h |
Grey | 14-16bit |
LED Best View distance | 8m-300m |
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
