1000 nits 1920HZ Fixed Led Video Wall Screen SMD2020 P4 Black face Full color 1080p
Introduction
1.Indoor advertising series, with the module size of 256mm*128mm.
2.Indoor Led screen has two kinds of cabinet size(iron material:768mm*768mm, AL material:768mm*768mm).
3.This LED cabinet only weighs 30kg per squar-meter and with depth of 100mm. That brings the benefits for the transportation.
4.The replace for modules costs few, without changing the original structure.
5.This unit cabinet offers a cost-effective display solution for indoor usage.
Quick details
Excellent White Balance
High quality Led Materials and PCB
Meanwell power supplier 5V 60A
Strong color signal cable
Nationstar led lamp SMD2020
PCB 1.6mm Thickness 4 layers
Cabinet size 768*768mm or customized (720p,1080P)
CE & UL certifications
Brightness:>1000nits
1. The first level LED chip from Taiwan Epistar
2. With pure golden wire connection in LED
3. Grand A row material for module frame and mask
4. 4 layers PCB and copper plating thickness > 18mil
5. Stainless steel screws when assembly
6. Disassembly and assembly are quick and easy
7. 3 to 5 years warranty
8 .Energy-saving 60% : driving with low frequency current, heat-dissipated roller fans with automatic temperature-controlling device.
Low Cost of Splicing
With an aspect ratio of 16:9, panel size is carefully designed so that the HD LED display can be assembled quickly and efficiently into the common display ratio of 4:3 or 16:9

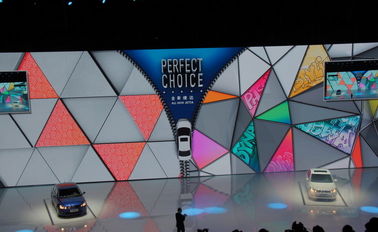

Indoor fixed led screen has many kinds of installation, like front open design, magnetic led panel design. It can be used all kinds shopping malls, night clubs, conference and so on.
P4 Indoor Led Screen
| ITEM |
P4 |
| Pixel Pitch(㎜) |
4 |
| Pixel Density(pixel/㎡) |
62500 |
| Pixel Component |
1R1G1B |
| LED Configuration |
SMD2121 |
| Panel Dimension(W×H)㎜ |
256*128 |
| Scan Mode |
1/32 |
| Cabinet Dimension(W×H)㎜ |
768*768 |
| Cabinet Material |
Die-casting Aluminum |
| Cabinet Weight(Kg) |
15 |
| Brightness(cd/㎡) |
≥1000 |
| Color Temperature |
3200K-9500K |
| Viewing Angle(V) |
120° |
| Viewing Angle(H) |
120° |
| Contrast Ratio |
125.0006944 |
| Max Power Consumption(w/㎡) |
≤800 |
| Ave Power Consumption(w/㎡) |
≤480 |
| Operating Power Source |
AC85~264V(47-63Hz) |
| Frame Frequency(Frame/S) |
60 |
| Refresh Rate(Hz) |
≥1200 |
| Gray Level |
RGB65536Grade |
