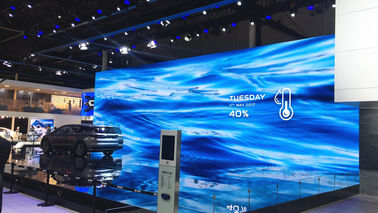

P4 Fixed installation 1000nits Led Wall Screen Video Display For Conference exhibition
Quick details
Excellent White Balance
High quality Led Materials and PCB
Meanwell power supplier 5V 60A
Strong color signal cable
Nationstar led lamp SMD2020
PCB 1.6mm Thickness 4 layers
Cabinet size 768*768mm or customized (720p,1080P)
CE & UL certifications
Brightness:>1000nits
p4 Led video wall HD led panel
1. Stainless steel screws when assembly
2. Disassembly and assembly are quick and easy
3. 3 to 5 years warranty
4 .Energy-saving 60% : driving with low frequency current, heat-dissipated roller fans with automatic temperature-controlling device.
5. Grand A row material for module frame and mask
6. 4 layers PCB and copper plating thickness > 18mil
7. The first level LED chip from Taiwan Epistar
8. With pure golden wire connection in LED
Introduction
1.Indoor advertising series, with the module size of 256mm*128mm.
2.Indoor Led screen has two kinds of cabinet size(iron material:768mm*768mm, AL material:768mm*768mm).
3.This LED cabinet only weighs 30kg per squar-meter and with depth of 100mm. That brings the benefits for the transportation.
4.The replace for modules costs few, without changing the original structure.
5.This unit cabinet offers a cost-effective display solution for indoor usage.
Low Cost of Splicing
With an aspect ratio of 16:9, panel size is carefully designed so that the HD LED display can be assembled quickly and efficiently into the common display ratio of 4:3 or 16:9
Indoor fixed led screen has many kinds of installation, like front open design, magnetic led panel design. It can be used all kinds shopping malls, night clubs, conference and so on.
P4 Indoor Led Screen
| ITEM |
Ph4 |
| Pixel Pitch(㎜) |
4mm |
| Pixel Density(pixel/㎡) |
62500 |
| Led Chip |
Epistar |
| LED Configuration |
SMD2020 Nationstar |
| Panel Dimension(W×H)㎜ |
256*128mm |
| Scan Mode |
1/32 |
| Cabinet Dimension(W×H)㎜ |
768*768 |
| Cabinet Material |
Iron |
| Cabinet Weight(Kg) |
50 KG |
| Brightness(cd/㎡) |
≥1000 |
| Color Temperature |
3200K-9500K |
| Viewing Angle(V) |
120° |
| Viewing Angle(H) |
120° |
| Contrast Ratio |
125.0006944 |
| Max Power Consumption(w/㎡) |
≤800 |
| Ave Power Consumption(w/㎡) |
≤480 |
| Operating Power Source |
AC85~264V(47-63Hz) |
| Frame Frequency(Frame/S) |
60 |
| Refresh Rate(Hz) |
≥1200 |
| Gray Level |
RGB65536Grade |
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Provide unique and professional solutions based on customer's requirement.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
