P1.9 Ultra Slim Light weight Precise UHD Led Display Front Maintenance
Quick details
400:300mm Die-casting cabinet Ratio 4:3
Reliable quality
6 layers PCB 2.0mm thickness
Nationstar led lamp SMD1515
MBI Ic from Taiwan
CE Power supplier 5V 60A
Classical design and natural tech., reliable quality and great performance.
Seamless connecting tech., screen flatness error <0.1mm.
Patented mask, eliminating the dark spots, improving consistency and viewing angle.
Detailed Specifications:
1. With pure golden wire connection in LED - Nationstar
2. Grand A row material for module frame and mask
3. 6 layers PCB and copper plating thickness > 18mil
4. Stainless steel screws when assembly
5. Disassembly and assembly are quick and easy
6. 3 to 5 years warranty
7. Energy-saving 60% : driving with low frequency current, heat-dissipated roller fans with automatic temperature-controlling device.

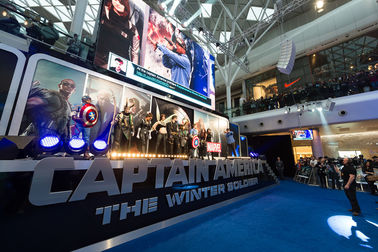

Now P1.9 ultra hd narrow pixel pitch led screens are widely used for Tv station ,conference and monitoring room...Also LED screen has its advantages like high brightness, good uniformity and grey,high contrast which beat DLP,LCD..
Ultra HD Narrow pixel pitch led screen are a trend in future, as led technology has been developped and revolution. Ultra HD p1.9 led screen is most hotseller in the market. We use best Epistar led chip and MBI high refresh IC, so that there is high grey 16 bits and no defective rate.
UHD-P1.9
Pixel Pitch(㎜) |
1.923 |
Pixel Density(pixel/㎡) |
270420 |
Pixel Component |
1R1G1B |
LED Configuration |
SMD1010 |
Panel Dimension(W×H)㎜ |
200*150 |
Scan Mode |
43126 |
Cabinet Dimension(W×H)㎜ |
400*300 |
Cabinet Material |
Die-casting Aluminum |
Cabinet Weight(㎏) |
8.5 |
Brightness(cd/㎡) |
≥800( Color Temperature6500K) |
Color Temperature |
3200K-9500K |
Viewing Angle(V) |
160° |
Viewing Angle(H) |
160° |
Contrast Ratio |
125.0006944 |
Max Power Consumption(w/㎡) |
1000 |
Ave Power Consumption(w/㎡) |
400 |
Operating Power Source |
AC85~264V(47-63Hz) |
Frame Frequency(Frame/S) |
60 |
Refresh Rate(Hz) |
≥2880 |
Gray Level |
RGB65536Grade |
Brightness Adjustment Level |
256Grade |
Brightness Adjustment Mode |
Manual/Automatic/Programmable |
Control Distance |
UTP<100m;Muti Mode Fiber<500m;Single Mode Fiber<10Km |
Operating Temp |
﹣20℃-﹢50℃ |
Operating Humidity |
10%-90%RH |
Protecting Rating |
IP31 |
