Product Details:
Payment & Shipping Terms:
|
| PCB: | 1.6mm Thickness | IC: | MBI5124 |
|---|---|---|---|
| Brightness: | >6500nits | Power Supplier: | 100-240V |
| Cabinet Materials: | Steel | Connnector: | Seetronic |
| Control System: | Linsn Or Colorlight | Cabinet Size: | Customized 960mm 800mm 640mm |
| Maintenance: | Rear Maintenace | Warranty: | 2 Years Or Longer |
| Main Power Cable: | 2.5 Or 4 Square Millimeter | Support Distance: | CAT5 Within 100m / Fiber >100m |
6500nits Waterproof Steel Cabinet Outdoor Fixed Led Display SMD3535 Advertising Video Scrolling

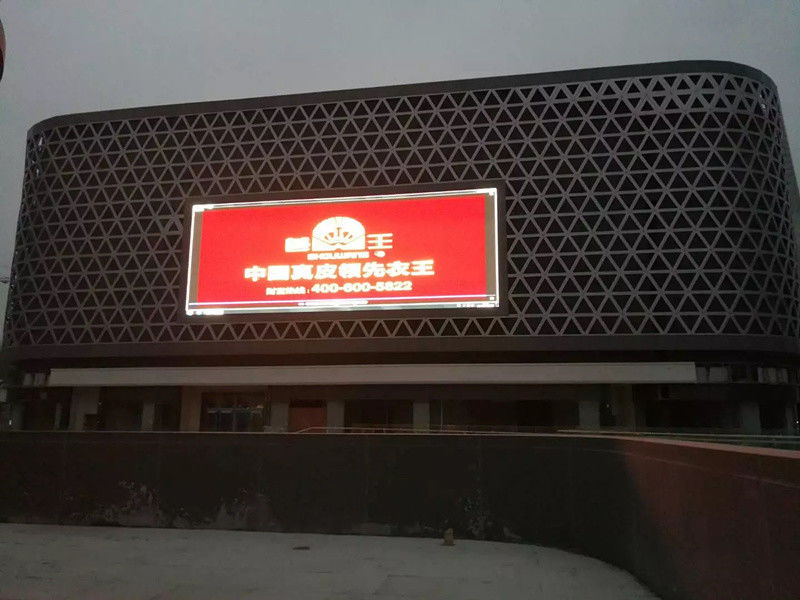

P10 Outdoor fixed led display can be hanging, Stacking, Installation into the wall and so on. Also It can be designed as front open, front access, Signle side, or Double side screens to make the maintanance easy.
Full color P10 outdoor led video screens can satisfy all kinds of demands of outdoor commercial digital media. And it is hotseller in past few years. Also new ideas are used onto it like AR, Interactive....
P10 Outdoor LED Display
| ITEM | P10 |
| Pixel Pitch(㎜) | 10 |
| Pixel Density(pixel/㎡) | 10000 |
| Pixel Component | 1R1G1B |
| LED Configuration | SMD3535 |
| Panel Dimension(W×H)㎜ | 320*160 |
| Scan Mode | 1/4 (or 1/2) |
| Cabinet Dimension(W×H)㎜ | 960*960/Customized |
| Cabinet Material | Iron/Customized |
| Brightness(cd/㎡) | ≥6000 ( or ≥7000) |
| Color Temperature | 3200K-9500K |
| Viewing Angle(V) | 140° |
| Viewing Angle(H) | 140° |
| Contrast Ratio | 3000:1 |
| Max Power Consumption(w/㎡) | 750 |
| Ave Power Consumption(w/㎡) | 300 |
| Operating Power Source | AC85~264V(47-63Hz) |
| Frame Frequency(Frame/S) | 60 |
| Refresh Rate(Hz) | ≥1200 |
| Gray Level | RGB65536Grade |
| Brightness Adjustment Level | 256Grade |
| Brightness Adjustment Mode | Manual/Automatic/Programmable |
| Control Distance | UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km |
| Operating Temp | ﹣20℃－﹢50℃ |
| Operating Humidity | 10%－90%RH |
| Protecting Rating | IP65 |
| MTBF | ＞10000h |
| LED Life Span | ＞100000h |
| LED Best View distance | ８m-300m |
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
