Product Details:
Payment & Shipping Terms:
|
| Feature: | Full Color | Support: | Texts, Video,Pics |
|---|---|---|---|
| Control: | U-disk , PC | Warranty: | 2 Years Or Longer |
| Power Supplier: | Meanwell | Brightness: | 6500nits |
| Voltage: | 100-24V | Weight: | 48kg Per Sqm |
| LED: | 1R1G1B |
Aluminum P16 DIP346 Epistar Led Outdoor Led Video Screen 14bits 100-240V 6500nits 50KG
Brief introduce:
1.Ultra bright LED lamp Nationstar, and the best raw materials to made into plastic parts.
2.Chip encapsulation uses pure golden wire to solder, red chip encapsulation uses double pure golden wires to keep stability. Led Chip Epistar Nichia Cree
3.The copper silvering trestle.
4.High-end specialized outdoor glue.
5.Brushing black lamp with five surface and black gluing to keep the uniformity of screen.
6.Plated signal and power connector.
7.Pure-copper environmental flat cable,pure-copper power wire.
High Brightness, Brightness adjust automatically
Meanwell Power supplier, Seetronic Connector
Meanwell power supplier
2 Years warranty or longer
5V 60A power supplier
Feature
1. Classic module design, superior product performance, stability.
2. Uniform color, high contrast, beautiful natural picture.
3. New perspective optimization design, covering the mainstream audience.
4. Anti UV, anti deformation module suite to protect the screen body deformation.
5. Patent design with unique color mask processing, showing the industry leading ultra high contrast.
6. Multiple waterproof casing design, single box full inspection factory, the protection level IP65 mature signal transmission architecture, equipped with the upgraded version of power management technology, the use of more secure and reliable.
7. Patent design with unique color mask processing, showing the industry leading ultra high contrast.
8. Ultra low temperature free fan design, low temperature rise, small attenuation, long service life.
Advantage
High quality LED chip and high anti-static electricity capacity.
Large viewing angle and smooth displaying provide excellent visual effect from every angle.
The integration of lamp and driving IC, together with with the multi-circuit structure, achieves evenly-distributed current, low power consumption and fast heat dissipation.
Ultra-high brightness, low attenuation, high reliability and weather ability.

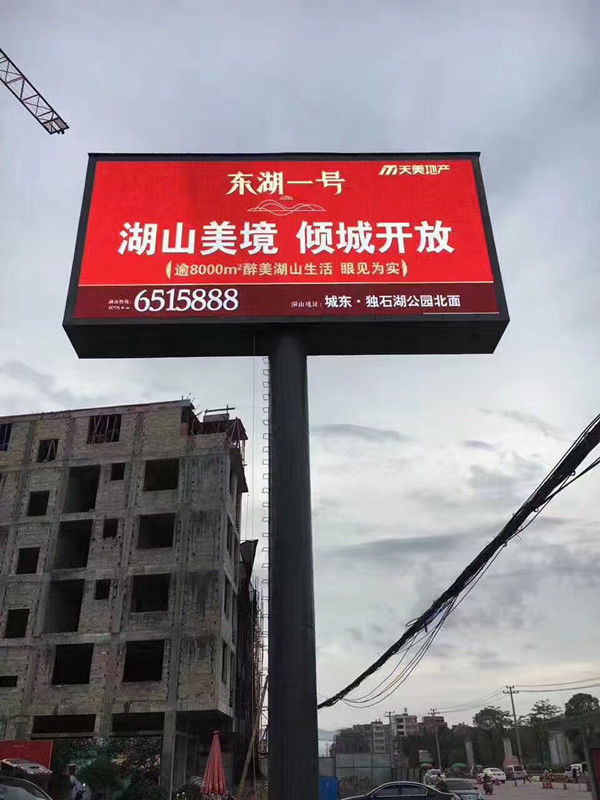

P16 Waterproof outdoor led video screen can be hanging, Stacking, Installation into the wall and so on. Also It can be designed as front open, front access screens to make the maintanance easy.
Specification parameter
P16 LED Video screen Specifications
| ITEM | P16 |
| Pixel Pitch(㎜) | 16 |
| Pixel Density(pixel/㎡) | 3906 |
| Pixel Component | 1R1G1B |
| LED Configuration | DIP346 |
| Panel Dimension(W×H)㎜ | 256*128 |
| Scan Mode | Static |
| Cabinet Dimension(W×H)㎜ | 1024*1024mm |
| Maintenance | Rear |
| Brightness(cd/㎡) | ≥6500 |
| Color Temperature | 3200K-9500K |
| Viewing Angle(V) | 120° |
| Viewing Angle(H) | 60° |
| Contrast Ratio | 125.0006944 |
| Max Power Consumption(w/㎡) | ≤750 |
| Ave Power Consumption(w/㎡) | ≤300 |
| Operating Power Source | AC85~264V(47-63Hz) |
| Frame Frequency(Frame/S) | 60 |
| Refresh Rate(Hz) | ≥960 |
| Gray Level | RGB65536Grade |
| Brightness Adjustment Level | 256Grade |
| Brightness Adjustment Mode | Manual/Automatic/Programmable |
| Control Distance | UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km |
| Operating Temp | ﹣20℃－﹢50℃ |
| Operating Humidity | 10%－90%RH |
| Protecting Rating | IP65 Front IP54 Rear |
| MTBF | ＞10000h |
| LED Life Span | ＞100000h |
| LED Best View distance | 10m-300m |
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
