Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 5mm | Lamp: | Nationstar |
|---|---|---|---|
| Connector: | Seetronics | Brightness: | >6500 Nits |
| Materials: | Steel Aluminum | Warranty: | 3 Years |
| Control: | By Computer Or U-disk Or Wifi Or 3G 4G Or Offline | Support Distance: | CAT5 <100m , Fiber >100M |
| Display Content: | Texts,pics, Video | Refrsh: | 1920HZ |

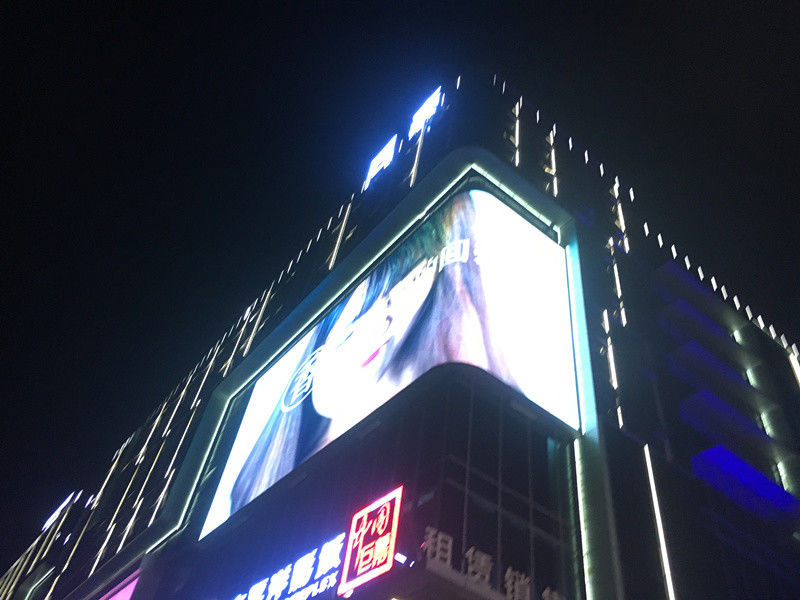

Programmable Advertising Billboard Display Outdoor Led Advertising Screen For Roadside
Details
It will operate at min Brightness also its save power .
The seamless design improves the display quality.
The replace for modules costs few, without changing the original structure.
This unit cabinet offers a cost-effective display solution for outdoor usage.
The square shape product can be composed from the LED cabinet with the proportion of 16:9 and 4:3.
This LED cabinet only weighs 50kg and with depth of 191mm. That brings the benefits for the transportation.
Featuring high resolution and high brightness, it can keep high contrast level even in strong sunlight.
Full color P5 outdoor led video screens can satisfy all kinds of demands of outdoor commercial digital media. And it is hotseller in past few years. Also new ideas are used onto it like AR, Interactive....
P5 Outdoor Fixed LED Display
| ITEM | P5 |
| Pixel Pitch(㎜) | 5 |
| Pixel Density(pixel/㎡) | 40000 |
| Pixel Component | 1R1G1B |
| LED Configuration | SMD2727 |
| Panel Dimension(W×H)㎜ | 160*160 |
| Scan Mode | 1/8 |
| Cabinet Dimension(W×H)㎜ | 960*960 960*800 |
| Cabinet Material | Iron Aluminum |
| Brightness(cd/㎡) | ≥6500 |
| Color Temperature | 3200K-9500K |
| Viewing Angle(V) | 140° |
| Viewing Angle(H) | 140° |
| Contrast Ratio | 4000:1 |
| Max Power Consumption(w/㎡) | 1100 |
| Ave Power Consumption(w/㎡) | 300 |
| Operating Power Source | AC85~264V(47-63Hz) |
| Frame Frequency(Frame/S) | 60 |
| Refresh Rate(Hz) | ≥1200 |
| Gray Level | RGB65536Grade |
| Brightness Adjustment Level | 256Grade |
| Brightness Adjustment Mode | Manual/Automatic/Programmable |
| Control Distance | UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km |
| Operating Temp | ﹣20℃－﹢50℃ |
| Operating Humidity | 10%－90%RH |
| Protecting Rating | IP65 |
| MTBF | ＞10000h |
| LED Life Span | ＞100000h |
| LED Best View distance | 5m-150m |
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
