Large Image :  Scan 1 / 16 Refresh Led Video Screen Rental , Black Face SMD2020 16 Bits Led Mesh Screen

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Zhongyi
Certification: CE / RoHS / FCC / ETL / TUV
Model Number: ZRIO

Payment & Shipping Terms:

Minimum Order Quantity: 1 squaremeter
Price: negotiation
Packaging Details: Flight cases
Delivery Time: 26-30 working days after received prepayment
Payment Terms: 30% T/T prepayment, 70% T/T balance before shipment
Supply Ability: 3000 squaremeters per months
Contact Now
Detailed Product Description
Power Brand: G-Energy LED Lamp: SMD2020 Black Face
Size: 500*500mm IC: MBI5124 MBI5252
Refresh: 1920HZ 2880HZ Led: Nationstar Gold
Connector: Seetronics Flight Case: 6 Pcs In A Case, Anti-static
Power Supplier: 5V 40A

Scan 1/16 Refresh 3000HZ Bright Led Video Screen Rental Black Face SMD2020 16bits 100-240V



Feature:
Application:Events, Concert, Stages, Wedding, Exhibition...
Reliable quality and good performance
SMD2020 Gold Wire lamp
4 Layers PCB 1.6mm Thickness
Black face SMD2020 high Contrast 4000:1
14-16 bits large Grey Scale
High Refresh Customized
Quick Installation, quick Disassemble
Save Labour and Time
Easy and Fast maintenance
Durable Die-casting Cabinet
Great Uniformity and Grey Scale



Advanteges

1:Die-casting aluminum adopted to make the cabinet frame is for ensuring its brilliant hardness,precision and the terrific surface flatness of entire display.
2:Thickness only with 8cm,and weight with 11kg/cabinet make it really portable.
3:2 handy interiocks make the assembly of an entire screen really easy,which saves a lot of labor cost.
4:Working state indicator at backside makes it easy to know its working state without opening the backdoor.
5:Good thermal design,excellent heat dissipation even no fans installation.



Detailed introduction:
(P3.91)250*250mm,500*500mm,SMD2121 / SMD2020 Gold
(P4.81)250*250mm,500*500mm or 500*1000mm
( P3)192*96mm,576*576mm,SMD2020 SMD2121 Gold wire
>>>LED brand: Epistar from Taiwan
>>>Power supply: G-energy or Meanwell
>>>Control system:Novastar

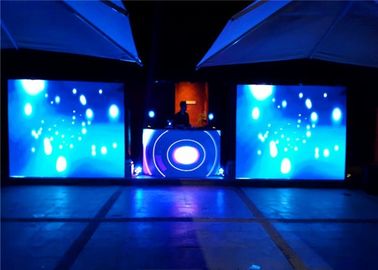

Portable rental led display are the superstar in the stage. It show the beauty of R,G,B colour. Now more and more events, audio&visual rental companies prefer to use durable rental led display because of its reliable quality, also amazing effect, which make the events getting a higher level.



ITEM P3.91
Pixel Pitch(㎜) 3.91
Pixel Density(pixel/㎡) 65536
Pixel Component 1R1G1B Epistar
LED Configuration SMD2121/ 2020 Nationstar
Panel Dimension(W×H)(mm) 250*250
Scan Mode 1/16,1/32
Cabinet Dimension(W×H)(mm) 500*500
Cabinet Material die-casting aluminum
Cabinet Weight Kg 8
Brightness(cd/㎡) >1000Nit
Color Temperature 3200K-9500K
Viewing Angle(V) 140°
Viewing Angle(H) 140°
Contrast Ratio 3000:1
Max Power Consumption(w/㎡) ≤800
Ave Power Consumption(w/㎡) ≤300
Operating Power Source AC85~264V(47-63Hz)
Frame Frequency(Frame/S) 60
Refresh Rate(Hz) ≥1200,≥2880,
Gray Level RGB65536Grade
Brightness Adjustment Level 256Grade
Brightness Adjustment Mode Manual/Automatic/Programmable
Control Distance UTP<100m;Muti Mode Fiber<500m;Single Mode Fiber<10Km
Operating Temp ﹣20℃-﹢50℃
Operating Humidity 10%-90%RH
Protecting Rating IP31
MTBF >10000h
LED Life Span >100000h
LED Best View distance 3m-100m



Pre-sale service:
1. Reply enquiries in 16 hours.
2. Provide unique and professional solutions based on customer's requirement.


In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.

After-sale service:
1. Lifetime free maintenance and upgrade.
2. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
