Front Open P10 Billboard Outdoor Fixed Led Display Video Advertising 6500nits Meanwell
Advantages:
Front access no tool needed
High reliable quality
Customized Made size
Adopt grating air convection cooling system,good heat dissapation
With certificate of CCC /CE/UL/TUV;
Strict waterproof gurantee of quality IP65
Strict quality control, white balance
Strict testing, waterproof testing, Aging testing, White balance test, High /low grey test
Feature
1. Energy-saving Design : Power consumption is lower than DIP outdoor products, each LED electric current is below 15mA, lifespan is longer, can reduce 25-50% of the power consumption effectively, low-carbon environmental protection, save electricity for customers .
2. Wide Viewing Angle : LED SMD encapsulation technology, makes surface more smooth, the outdoor full color LED Display can reach 140 degrees viewing angle both in the horizontal and the vertical direction, this has special advantages in some place, such as wall LED Display, requires a wide viewing angle to show better advertising effect.
3. Nice Color Blending : color uniformity is good, outdoor SMD 3-in-i design technology makes all the red, green, and blue chip in one structure, distance is close, so it ensures the coherence of brightness at optional angle is very good, achieve vivid viewing effect, at the same time, the mask is dealt with special processing, can ensure the coherence of product’s brightness further.
4. High Definition : High contrast, due to 3-IN-1 design structure, full-color SMD3535 lamp bead size is small, so the light emitting area is small, the black area is large, enhances the contrast of LED Screen, the 1/2 scan mode high refresh rate, the gray level > 16384, the refresh rate > 1200 Hz,makes the outdoor full-color LED Display is clear enough to replace the traditional DIP LED Display.
5. Good Heat Dissipation: using six Angle SMD3535 lamp bead, the heat of lamp and IC can be dispersed by PCB board more effectively, improve the heat dissipation performance of LED display module significantly.
6. High Automation Production Efficiency: SMD LED can be processed by automatic SMT mounter, improving production efficiency, reducing defective product rate.
7. Light Cabinet Weight : Outdoor SMD 3-IN-1 LED uses waterproof glue filling process, because of low lamp foot, don’t need too much glue to cover the lamp foot like the DIP, the surface is nice and not deformed easily, assembling is convenient and neat. Unit module is very suitable for rental companies, truck mounted LED screen, mobile media advertising usage etc.
Specifications
P10 SMD3535 led screen
Modules 320*320mm 320*160mm 160*160mm
Better viewing angle 140 / 140 degree
Driving method is 1/4 can constant current;
MBI5041/MBI5024/JXI5020 of driving IC available;
Maximum power consumption is less than 83.61W/sq.ft (900W/㎡);
Waterproof is IP65 for lamp & top, other part: IP54.

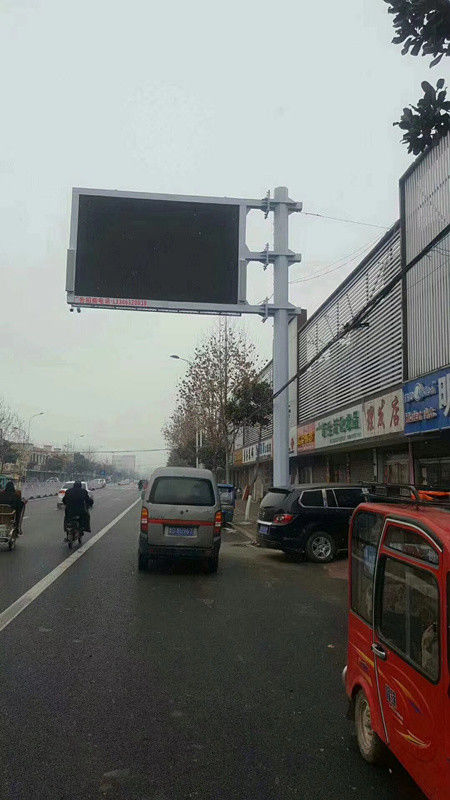

P10 Outdoor fixed led display can be hanging, Stacking, Installation into the wall and so on. Also It can be designed as front open, front access, Signle side, or Double side screens to make the maintanance easy.
P10 Outdoor LED Display
| ITEM |
P10 |
| Pixel Pitch(㎜) |
10 |
| Pixel Density(pixel/㎡) |
10000 |
| Pixel Component |
1R1G1B |
| LED Configuration |
SMD3535 |
| Panel Dimension(W×H)㎜ |
320*160 |
| Scan Mode |
1/4 (or 1/2) |
| Cabinet Dimension(W×H)㎜ |
960*960/Customized |
| Cabinet Material |
Iron/Customized |
| Brightness(cd/㎡) |
≥6000 ( or ≥7000) |
| Color Temperature |
3200K-9500K |
| Viewing Angle(V) |
140° |
| Viewing Angle(H) |
140° |
| Contrast Ratio |
3000:1 |
| Max Power Consumption(w/㎡) |
750 |
| Ave Power Consumption(w/㎡) |
300 |
| Operating Power Source |
AC85~264V(47-63Hz) |
| Frame Frequency(Frame/S) |
60 |
| Refresh Rate(Hz) |
≥1200 |
| Gray Level |
RGB65536Grade |
| Brightness Adjustment Level |
256Grade |
| Brightness Adjustment Mode |
Manual/Automatic/Programmable |
| Control Distance |
UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km |
| Operating Temp |
﹣20℃－﹢50℃ |
| Operating Humidity |
10%－90%RH |
| Protecting Rating |
IP65 |
| MTBF |
＞10000h |
| LED Life Span |
＞100000h |
| LED Best View distance |
８m-300m
|
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
