6500 Nits Fixed Outdoor Digital Display Screens Background On Building

China 6500 Nits Fixed Outdoor Digital Display Screens Background On Building supplier
6500 Nits Fixed Outdoor Digital Display Screens Background On Building supplier 6500 Nits Fixed Outdoor Digital Display Screens Background On Building supplier

Large Image :  6500 Nits Fixed Outdoor Digital Display Screens Background On Building

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Zhongyi
Certification: CE / RoHS / FCC / ETL / TUV
Model Number: ZF15-31

Payment & Shipping Terms:

Minimum Order Quantity: 1 squaremeter
Price: negotiation
Packaging Details: Plywood cartons
Delivery Time: 15-18 days after received prepayment
Payment Terms: 30% T/T prepayment, 70% T/T balance before shipment
Supply Ability: 3000 squaremeters per months
Contact Now
Detailed Product Description
Type: Mesh & Cutain Screen Brightness: 6500nits
Installation: Tool-free Work Temprature: -40℃ -- -80℃
Weight: 15kg Per Sqm Cooling: Natural Convection
Material: Fire Resistant Materials LED Lifetime: 100,000 Hours

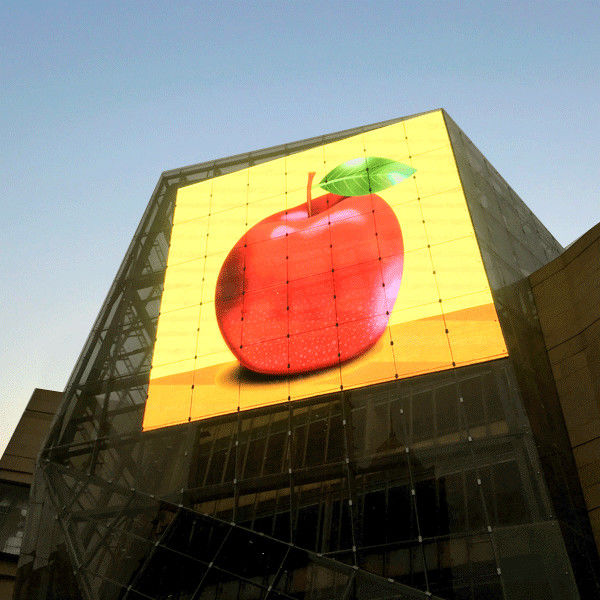

-40 ~+85°C P15-31 Outdoor Fixed Led Mesh Display Video Curtain Background on Building
Quick introduction:
Look like Screenless
Quick installation
Finish installation 10 seconds per sqm
Fast maintenance
Patented design for 3 minutes/sqm
Easy to achieve front / rear maintenance
Special only led Grid Screen
Steel weight 10KG/sqm only, equal 15% of traditional outdoor led screen steel Cabinet
Transparency 40%-80%

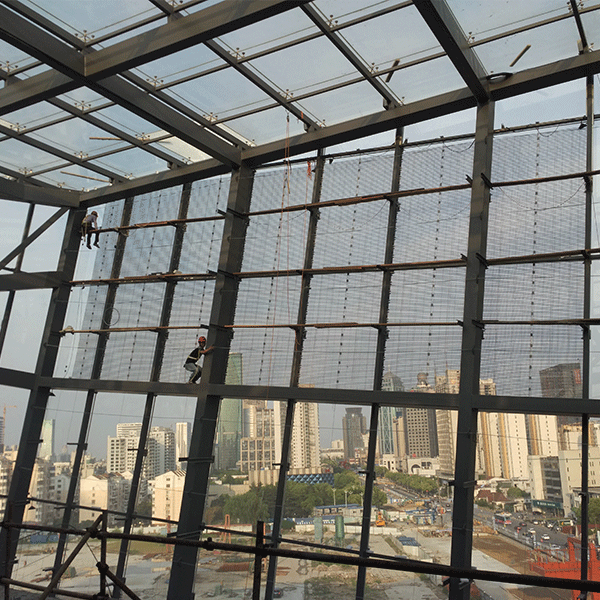

1. Extremely light weight----------14kgs/sqm, can be install onto building glass wall.
2. Fast installation ---------Average 5-10 seconds to install an individual cabinet.
3. Stability long life time-------Low consumption of electricity to increase the lifetime of LEDs.
4. Energy efficient--------average 104W per sqm
5. Simple structure-------Reduce the cost of steel structure (Average 5 USD per sqm)
Pixel Pitch: Horizontal 15.6mm Vertical 31.25mm
Cost savings 80% of maintain operation
Cost savings 70% of electricity
Cost savings of Air conditioner
Cost savings 70% of steel structure
Cost savings 80% of labour
Cost savings 75% of transportation
Brief info:
1. No Escape Tool design: screen environment mostly glass building in case of fire, escape and rescue are very urgent and important, Sunrise P15.625 outdoor screen tool-free disassembly function screen rear side of two seconds, especially respect for life and fully meet fire safety requirements.

2. unique within the industry, ultra-light weight: unit box weighs only 7.45KG (50 * 100CM), the project is only 1500KGS screen body weight thus reducing the building to support the weight of the body on the screen, minimize security risks!!

3.Standardized installation framework (standard frame size 200CM wide X100CM height), small on-site construction difficulty, high precision, fast efficiency! The measure, the industry faster than 3-5 times, greatly reducing the body of the screen frame and fixed installation time, substantial savings in installation costs.

4. The screen is fixed to the body frame fixed firmware process is simple, easy to operate, completely within the industry complex and time-consuming step shortcomings.

5. The dual power backup design: display body control card power supply and separate power supply, reducing power interference between the two, improve quality screen body stability.

6. Ultra power-saving design: each squared average power consumption control at about 150W, than peers of similar products saving more than 50% each year for the owner saving about eight million (100 square color screen, runs daily from 8:00 am to 22:00, ie 14 hours calculated)
Low power consumption, low heat, energy saving and environmental protection
Signal, power supply stability, the use of safe and reliable
Efficient and stable, high reliability, long service life
No fan design, low temperature operation, quiet no noise
Ultra-thin box, easy to transport, installation and maintenance
Support front and rear maintenance, installation more convenient


Specification parameter P15-31 Mesh outdoor Led Curtain Fixed led Display

Tube color Specifications Indicators (typical values, specific to selected lamps)
R domestic Wavelength: 618-630nm, brightness 870mcd (20mA)
G domestic Wavelength: 518-538nm, brightness 1680mcd (10mA)
B domestic Wavelength: 460-480nm, brightness 380mcd (10mA)
Product model 15mm-31mm
Horizontal spacing(mm) Vertical spacing(mm) 15.625mm 31.25mm
Pixel composition DIP346 SMD2727
Resolution (dot/㎡) 4096
Unit cabinet dots 2048
Pixel per Unit(dots) 32(W)x64(H)
Color Grayscale (Bit) 14
Brightness(CD/㎡) ≥6500cd
Contrast 1:1600
Color temperature 6500-9300k
(Brightness adjust) 0-255
Horizontal viewing angle(°) Vertical viewing angle(°) ≥110° ≥50°
The best viewing distance(M) 15-300
Max Consumption(W/㎡) 450
Average power consumption(W/㎡) 135
Unit cabinet Weight (kg/pcs) 10.0
Cabinet Weight (kg/㎡) 20.0
Frame Weight (kg/㎡) 8.0
Unit cabinet thickness (cm) 6.7
Frame thickness (cm) 6.0
Installation thickness (cm) 12.7
Strips width(mm) 9.8


Pre-sale service:

1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.

In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.

After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
