Grid Anti-Wind Fixed Installation P31.25 DIP LED Display Curtain No Need Air conditioner -35℃ - +80℃
Brief info:
Special only led Grid Screen

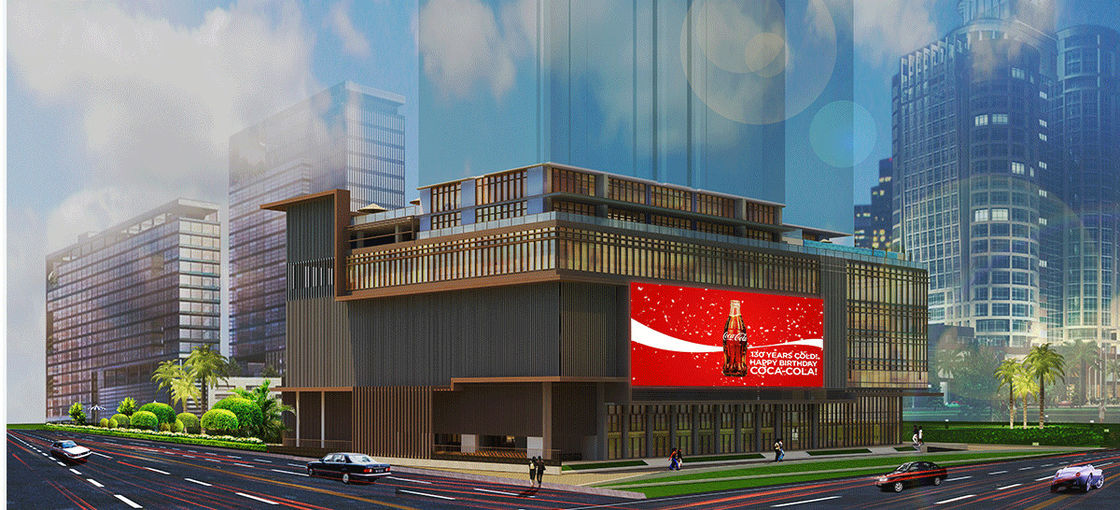

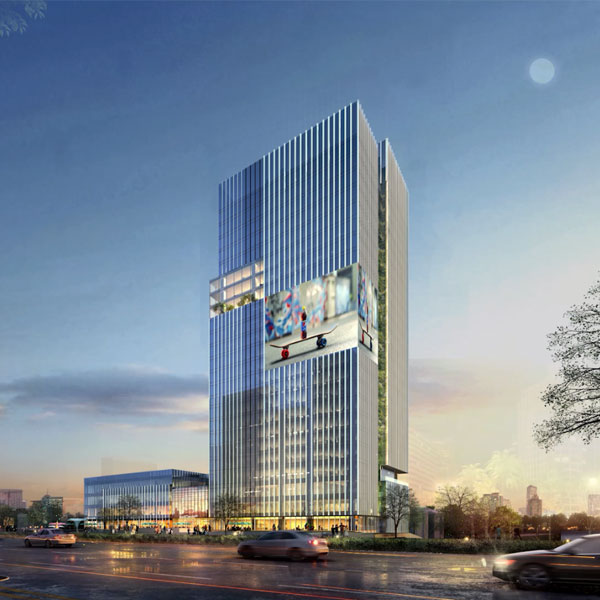

1. Outdoor led display curtain display suitable for different facade of the buildings; it can be customized according to the shape of building and integration with the wall.
2. Very easy installation and maintenance, ultra-slim frame structure can achieve front and rear maintain according to the using environment which can save a lot maintain cost.
3. Led curtain display thickness is only 70mm, 2cm thickness of front maintain structure, 18kg/sqm of led curtain display which lighter 30-60% to the traditional led display. Reduce the construction load efficiency and reduce installation costs.
4. Aluminum alloy cabinet structure with high strength, no deformation, anti-corrosion characteristic. Adapt to a variety of climatic conditions, especially high temperature, high humidity environment.
5. Led curtain display adopted integrated, modular design achieve module or cabinet assemble and disassemble function.
6. Architectural contour and wall structure does not to be changed due to its lightweight and hollow design. It is also good for lighting.
7. Led curtain led display not only features lightweight structure but also has beautiful appearance which can be installed on the wall without any change.
Low temperature power supplier
Great reliable quality
-35℃ -- +80℃
80% heat sinking IP67
Quick introduction:
Cost savings of Air conditioner
Cost savings 80% of maintain operation
Cost savings 70% of electricity
Cost savings 70% of steel structure
Cost savings 80% of labour
Cost savings 75% of transportation
Fast maintenance
Patented design for 3 minutes/sqm
Easy to achieve front / rear maintenance
Transparency 40%-80%
Look like Screenless
Quick installation
Finish installation 10 seconds per sqm
Specification parameter P31.25 outdoor Led Curtain Fixed led Display
| Tube color | Specifications | Indicators (typical values, specific to selected lamps) |
| R | domestic | Wavelength: 618-630nm, brightness 870mcd (20mA) |
| G | domestic | Wavelength: 518-538nm, brightness 1680mcd (10mA) |
| B | domestic | Wavelength: 460-480nm, brightness 380mcd (10mA) |
| Product model | 31.25mm-31.25mm |
| Horizontal spacing(mm) Vertical spacing(mm) | 31.25mm 31.25mm |
| Pixel composition | DIP346 |
| Resolution (dot/㎡) | 4096 |
| Unit cabinet dots | 1024 |
| Pixel per Unit(dots) | 32(W)x32(H) |
| Color Grayscale (Bit) | 14 |
| Brightness(CD/㎡) | ≥6000cd |
| Contrast | 1:1600 |
| Color temperature | 6500-9300k |
| (Brightness adjust) | 0-255 |
| Horizontal viewing angle(°) Vertical viewing angle(°) | ≥110° ≥50° |
| Support | DVI HDMI |
| Max Consumption(W/㎡) | 450 |
| Average power consumption(W/㎡) | 135 |
| Unit cabinet Weight (kg/pcs) | 10.0 |
| Cabinet Weight (kg/㎡) | 20.0 |
| Frame Weight (kg/㎡) | 8.0 |
| Unit cabinet thickness (cm) | 6.7 |
| Frame thickness (cm) | 6.0 |
| Installation thickness (cm) | 12.7 |
| Strips width(mm) | 9.8 |
| Transparent Rate(%) | 40% |
| Frame rate(HZ) | 60 |
| Pixel uncontrol rate | ＜1/10000 |
