Product Details:
Payment & Shipping Terms:
|
| LED: | SMD1921 Nationstar | Led Chip: | Epistar |
|---|---|---|---|
| Power Supplier: | G-energy | Control System: | Novastar |
| Connector: | Seetronics | Size: | 500*1000mm |
| Ip65: | Waterproof |

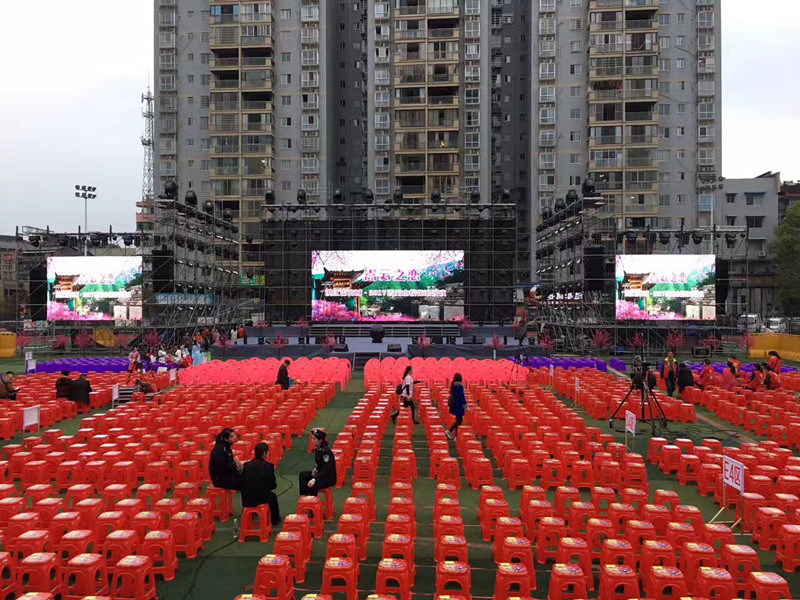

P4.81 SMD1921 Black Face Outdoor Led Screen Hire High Contrast High Resolution 5500nit IP65
Advantages:
exceptional image quality, high brightness and auto adjustment according to environment, intelligent group management, easy and convenient.
Inner arc design support 0 to 6 degree straight screen and accurate splicing with creative and flexible styling.
The series products including 3.91mm, 4.81mm, 5.95mm, and 6.25mm pixel pitch, have the same structure and the same easy installation mode.
Lightweight, super thin, simple, plug and play operation, easy to use, IP65 waterproof,
Simple
Ultra lightweight and slim design: 8kg and 77mm modular panel: fewer cables, 1-in 1-out design plug and 1-in 1-out design signal cable;
1. Lightweight. Die-casting aluminum panel of 500x1000mm, each panel weighs 13kg,it is convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. The LED cabinet design has a nice appearance and simple structures.
3. The LED wall jointed correctly, being installed & dismounted by one person without tool.
4. The LED display has humanized operating interface with breakdown indicator
lights, easy to maintain
5. The LED screen brightness debugging and no damage to grayscale, achieving the debugging technology for nice image.
1. Humanized brightness adjustment
The external sensor can adapt to the environment, and its playback quality will not be affected by ambient light.
2. Single point of brightness and color temperature correction technology
Guarantee of good consistency of display screen. Single point correction technology is the core of LED display technology, it allows hundreds of thousands of LED lights on the same panel to glow uniformly, making the screen brightness and color temperature highly unified.
3. Ultra high refresh rate
Intake five black screen picture stability without ripples, dealing with the dynamic display screen, and the image edge is clear. With good dynamic performance, the image information is restored accurately, make the video screen clear fluid, bring good visual enjoyment.
4. High Reliable Quality
Nationstar SMD1921 is best brand lamp in China market
MBI IC is most reliable IC in the market
G-Energy is most popular in Led Screen industry.
| Item | Technical Parameters |
| Screen model | P4.81SMD1921 |
| Led encapsulation | SMD1921 |
| Led configuration | 1R1G1B |
| Pixel pitch(mm/inch) | 4.81mm / 0.19 inch |
| Red chip | Wavelength range: 620-630nm, 5nm; Brightness range:500-900mcd |
| Green chip | Wavelength range: 460-470nm, 4nm; Brightness range: 1200-1500mcd |
| Blue chip | Wavelength range: 520-530nm, 4nm; Brightness range: 300-450mcd |
| Resolution | 4016dots/sq.ft (43223dots/㎡) |
| Maintenance | Front | Rear maintained |
| Brightness: CD/sq.ft (CD/㎡) | >511CD/sq.ft (5500 cd/sq.m) |
| Refreshing frequency: Hz | >1200 Hz |
| Grey scale | 16bit |
| Module pixel | W 52 × H 52 dots |
| Module size | W 9.8 X H 9.8 inch (W 250 × H 250 mm) |
| Viewing angle | Horizontal: 140°, Vertical: 140° |
| Cabinet material | Die-casting aluminum |
| Lightness uniformity | Pixel & module>90% |
| Cabinet color | Customized |
| Driving method | 1/13 scan constant current |
| Driving IC | MBI5014 |
| Power supply | 85-264VAC, typical value: 110VAC/220VAC |
| Max consumption | Max.≤89.12W/sq.ft (960W/sq.m) |
| Average consumption | Ave.: 29.73-44.59w/sq.ft(Ave.:320-480w/㎡) |
| Led life time | ≥100000hours |
| Mean time to failure | ≥5000hours |
| Module plainness | ≤1mm |
| Pixel out of control | less than 1/ 10⁻⁴, dispersion state |
| Working temperature | -30ºC to +60ºC |
| Working humidity | 20% to 90% |
| Waterproof IP | lamp & top:IP65, other part:IP54 |
| Protection function | dampproof/dust-free/anti high temp/anti-thunder/ anti electromagnetic interference, etc |
| Certificate | CCC /CE/UL/Rohs/Tuv |
| Hardware interface | Standard PC network interface technology/U disk/3G |
| Display mode | 24 bit true color |
| Colors | 281 trillion colors |
| Colour processing ability | ≥14bit |
| Color temperature | 3000K ≤ TC ≤9000K, adjustable |
| Brightness regulating degrees | continuously adjustable step by step through the software |
| Anty-Y correction curve | Anti-γ correction system: 2.2-2.8 adjustable |
| Image adjust | White balance/contrasting / hue control/ Single point brightness adjustment |
| Image processing | mage noise reduction/ image enhancement/ image motion compensation/ Image color coordinate transformation processing/ Image passivation treatment |
| Correction technology | Yes |
| Video mode | AVI, WMV, MPG, MOV, DAT, VOB, MP4, FLV |
| Controlling platform |
Windows |
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
