Outdoor IP65 AV Hire Led Video Screen P10 SMD3535 9KG CE Certification

China Outdoor IP65 AV Hire Led Video Screen P10 SMD3535 9KG CE Certification supplier

Large Image :  Outdoor IP65 AV Hire Led Video Screen P10 SMD3535 9KG CE Certification

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Zhongyi
Certification: CE ROSH FCC UL
Model Number: ZRO10

Payment & Shipping Terms:

Minimum Order Quantity: 1 sqms
Price: negotiated
Packaging Details: Flight cases
Delivery Time: 25 days
Payment Terms: T/T 30% Prepayment, T/T 70% before shipment
Supply Ability: 3000 sqms
Contact Now
Detailed Product Description
Pixel Pitch: 10mm Led: SMD3535
Led Chip: Epistar Cabinet Size: 640*640mm
IC: MBI5124 Power Supplier: G-energy
Connector: Seetronics

Outdoor IP65 1920hz AV Hire Led Video Screen Rental Use P10 SMD3535 9KG


1) LED: well-known international brand, with wide viewing angle, high brightness, little attenuation, good heat dissipation, and vivid colors.
2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective phenomena, such as dark bright, virtual light and so on.
3) Power supply: industrial-strength brand. The power t maximum power reserve of 20% the space, the range of voltage fluctuation is less 5%, high stability.
4) Connector: Aerial grade brands ensure the stable transmission of power and signal.
5) PCB Board: adopt 4-layer design.
6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person. The replacement of any cabinet can be done within 50 seconds.


Outdoor P10 rental led screen
1) High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light.
3) Big viewing angle to 140 degree at horizontal line, 140 degree at vertical line, you can see at every angle at this range, high brightness, high resolution, clear and non-flash screen image, long service life.

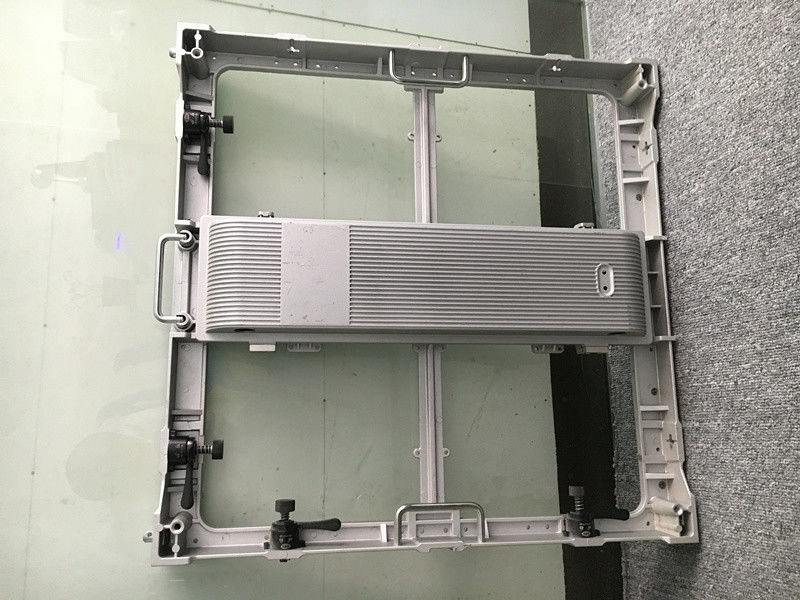

4) First debut of outdoor higher resolution diecasting cabinets
completely aluminum hanging structure eqivalent with heat dissipation
5) 17 Kg/unit,borned for rental application
The special design features of the screens express the unique artistic charm, such as lightness, thinness and so on.

Application area

Outdoor advertising, digital billboards, advertising in big companies
Sports halls, fields, playgrounds.
Airports, bus stations and railway passenger terminals.
Facades of shopping malls, department stores, banks and car dealerships.
Architecture and social projects, information systems in cities.
Show-business, concerts, festivals, motor shows and other public events.


P10 Outdoor led screen Specifications:

Pixel Pitch(㎜) 10
Pixel Density(pixel/㎡) 25600
Pixel Component 1R1G1B
LED Configuration SMD3535
Panel Dimension(W×H)㎜ 320*160
Scan Mode 43104
Cabinet Dimension(W×H)㎜ 640*640
Cabinet Material Die-casting Aluminum
Cabinet Weight(Kg) 17
Brightness(cd/㎡) ≥5500
Color Temperature 3200K-9500K
Viewing Angle(V) 140°
Viewing Angle(H) 140°
Contrast Ratio 125.0006944
Max Power Consumption(w/㎡) ≤750
Ave Power Consumption(w/㎡) ≤300
Operating Power Source AC85~264V(47-63Hz)
Frame Frequency(Frame/S) 60
Refresh Rate(Hz) ≥1200
Gray Level RGB65536Grade
Brightness Adjustment Level 256Grade
Brightness Adjustment Mode Manual/Automatic/Programmable
Control Distance UTP<100m;Muti Mode Fiber<500m;Single Mode Fiber<10Km
Operating Temp ﹣20℃-﹢50℃
Operating Humidity 10%-90%RH
Protecting Rating Front IP65,Back IP54
MTBF >50000h
LED Life Span >100000h
LED Best View distance 5m-150m
