Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 8mm | Led: | SMD3535 |
|---|---|---|---|
| IC: | MBI5124 | Connector: | Seetronics |
| Control System: | Novastar | Control: | By Computer |
| IP: | Ip65 Waterproof | Cabinet Materials: | Steel Or Aluminum |

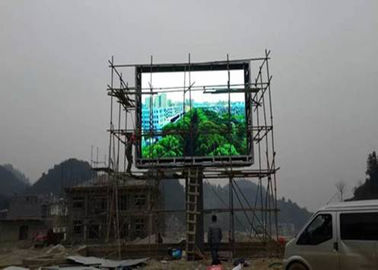

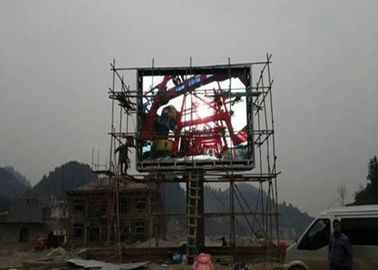

OEM Large Scale Video Wall Double Sided Led Display SMD3535 3-5 years Warranty
| Screen model | P8 SMD3535 |
| Led encapsulation | SMD3535 |
| Led configuration | 1R1G1B |
| Pixel pitch(mm/inch) | 8mm / 0.31 inch |
| Red chip | Wavelength range: 619-628nm, 5nm; Brightness range:700-1000mcd |
| Green chip | Wavelength range: 461-470nm, 4nm; Brightness range: 1400-1700mcd |
| Blue chip | Wavelength range: 522-531nm, 4nm; Brightness range: 350-500mcd |
| Resolution | 1452dots/sq.ft (15625dots/㎡) |
| Maintenance | Front-maintained |
| Brightness: CD/sq.ft (CD/㎡) | >511CD/sq.ft (5500 CD/㎡) |
| Refreshing frequency: Hz | >960 Hz |
| Grey scale | 14bit |
| Module pixel | W 40 × H 40 dots |
| Module size | W 12.60 X H 12.60 inch (W 320 × H 320 mm) |
| Viewing angle | Horizontal: 120°, Vertical: 120° |
| Cabinet material | Aluminum/Iron |
| Lightness uniformity | Pixel & module>90% |
| Cabinet color | Customized |
| Driving method | 1/5 scan constant current |
| Driving IC | MBI5041/MBI5024/JXI5020 |
| Power supply | 85-264VAC, typical value: 110VAC/220VAC |
| Max consumption | Max.≤89.12W/sq.ft (960W/㎡) |
| Average consumption | Ave.: 29.73-44.59w/sq.ft(Ave.:320-480w/㎡) |
| Led life time | ≥100000hours |
| Mean time to failure | ≥5000hours |
| Module plainness | ≤1mm |
| Pixel out of control | less than 1/ 10⁻⁴, dispersion state |
| Working temperature | -30ºC to +60ºC |
| Working humidity | 20% to 90% |
| Waterproof IP | lamp & top:IP65, other part:IP54 |
| Protection function | dampproof/dust-free/anti high temp/anti-thunder/ anti electromagnetic interference, etc |
| Certificate | CCC /CE/UL/RoHS/Tuv |
| Hardware interface | Standard PC network interface technology/U disc/3G |
| Display mode | 24 bit true color |
| Colors | 281 trillion colors |
| Colour processing ability | ≥14bit |
| Color temperature | 3000K ≤ TC ≤9000K, adjustable |
| Brightness regulating degrees | continuously adjustable step by step through the software |
| Anty-Y correction curve | Anti-γ correction system: 2.2-2.8 adjustable |
| Image adjust | White balance/contrasting / hue control/ Single point brightness adjustment |
| Image processing | mage noise reduction/ image enhancement/ image motion compensation/ Image color coordinate transformation processing/ Image passivation treatment |
| Correction technology | Yes |
| Video mode | AVI, WMV, MPG, MOV, DAT, VOB, MP4, FLV |
| Controlling platform | Windows, Apple |
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
