Product Details:
Payment & Shipping Terms:
|
Led: | Black Face SMD2020 | Resolution: | 3.91mm |
---|---|---|---|
IC: | MBI5252 | Lamp: | 1R1G1B Epistar |
Voltage: | 100-240v | Brightness: | >1000nits |
Size: | 500*500mm | Materials: | Die-casting Aluminum |
Refresh: | 4000HZ | Installation: | Stacking Hanging |
Guarantee: | More Than 2 Years |
Refresh 4000HZ MBI5252 Neutrik connector PH3.91 Indoor Rental Led Display 0.5meter by 0.5meter SMD2020
The model of P3.91 is targeted for high-end market. Its advantages are like stable quality, high refresh, low defective rate, light weight, easy for assemble, dismentle.
Save Labour cost, Light weight
Different signal resources input such as TV, HDTV, S Video, NTSC/PAL, DVI, VGA, SDI and HD-SDI are acceptable;
LED Lamp encapsulation: Black face SMD2020. High contrast.

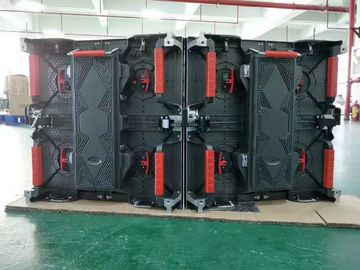

Lightweight and slim, Fashion and Easy to assemble:
Fast installation, one cabinet within 5s;
Magnetic lock design for quick positioning and assembly;
Single technician and tool-free installation;
Light weight, 60% space saved for transportation;
Quick Return for Investment, time can reduce to half a year or even shorter;
2. Advanced Dot-by-dot calibration Technology, LED board with flash data storage function:
Enclosed noise-free design, applicable for high end and quiet places;
Snap design mask ensures stableness, flatness and easy maintenance;

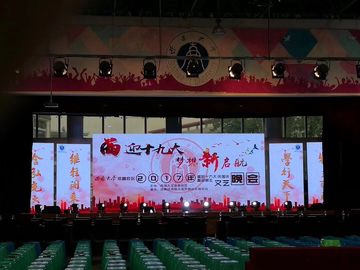

LED Indoor/Outdoor Video Wall Hiring
The next generation indoor and outdoor LED video walls. Thrill your audience with bright, vivid color display. These high definition panels can be customized to any shape or size wall for your event needs. With this advanced LED technology, possibilities are limitless.
LED Video Wall Hire Solutions
A seamless LED video wall hiring from Ocolour is a turnkey solution to make a high-powered impact at your next event. We offer the high resolution LED video wall rentals for all sorts of events, and other corporate functions. Our LED Screens can be scaled from a small implementation to a large scale venue.
ITEM | P3.91 |
Pixel Pitch(㎜) | 3.91mm |
Pixel Density(pixel/㎡) | 65536 |
Ratio | 4:3 9:6 16:9 any size |
LED Configuration | SMD2020 Epistar |
Panel Dimension(W×H)(mm) | 250*250mm |
Scan Mode | 1/16 |
Cabinet Dimension(W×H)(mm) | 500*500 |
Power supplier | G-Energy |
Cabinet Weight Kg | 8 |
Brightness(cd/㎡) | >1000Nit |
Color Temperature | 3200K-9500K |
Viewing Angle(V) | 140° |
Viewing Angle(H) | 140° |
Contrast Ratio | 4000:1 |
Max Power Consumption(w/㎡) | ≤650 |
Ave Power Consumption(w/㎡) | ≤250 |
Operating Power Source | AC85~264V(47-63Hz) |
Frame Frequency(Frame/S) | 60 |
Refresh Rate(Hz) | 4000 |
Gray Level | RGB65536Grade |
Brightness Adjustment Level | 256Grade |
Brightness Adjustment Mode | Manual/Automatic/Programmable |
Control Distance | UTP<100m;Muti Mode Fiber<500m;Single Mode Fiber<10Km |
Operating Temp | ﹣20℃-﹢50℃ |
Operating Humidity | 10%-90%RH |
Protecting Rating | IP31 |
MTBF | >10000h |
LED Life Span | >100000h |
LED Best View distance | 3m-100m |
