Product Details:
Payment & Shipping Terms:
|
| Led: | SMD2727 | Cabinet: | Steel Or Aluminum |
|---|---|---|---|
| Led Chip: | Epistar | Brightness: | >6500 Nits |
| IP: | IP65 | Control System: | Linsn Or Nova |
| Control: | By Computer Or U-disk Or Wifi Or 3G 4G Or Offline | Support Distance: | CAT5 <100m , Fiber >100M |
| Display Content: | Texts,pics, Video | Application: | Street, Building, Shopping Mall,shops.. |
| Pixel Pitch: | 5mm,6mm,8mm,10mm |
Outdoor 3G 4G Wifi cloud cluster Led pole screen video advertising light box
Brief introduce:
1. High brightness:Above 5500 nits/sq.m
2. High Refresh Rate:≥1920Hz,Take clear picture with mobile phone
3. Ultra Thin Design:the thickness of cabinet with backdoor is only 17cm
4. Fast and easy to assemble:There have fast lock between cabinet side
5. Several methods to control (Offline-USB, 3g,4g, wifi, cloud cluster group, remote)

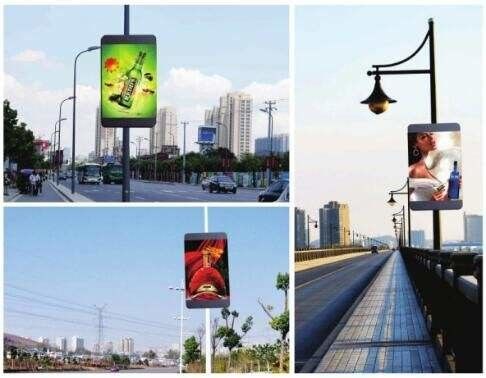

Currently Led pole screen is popular in outdoor digital media application. It has advantages like customized display sizes, high definition, friendly user interface and multi-functional control methods.
Led pole screen can be designed as front open, front access screens to make the maintanance easy.
P5 Outdoor LED Display
| ITEM | P5 |
| Pixel Pitch(㎜) | 5mm |
| Pixel Density(pixel/㎡) | 40000 |
| Pixel Component | 1R1G1B |
| LED Configuration | SMD2727 |
| Panel Dimension(W×H)㎜ | 16*160 |
| Scan Mode | 1/4 |
| Cabinet Dimension(W×H)㎜ | Customized |
| Cabinet Material | Iron/Customized |
| Brightness(cd/㎡) | ≥6000 ( or ≥7000) |
| Color Temperature | 3200K-9500K |
| Viewing Angle(V) | 140° |
| Viewing Angle(H) | 140° |
| Contrast Ratio | 3000:1 |
| Max Power Consumption(w/㎡) | 750 |
| Ave Power Consumption(w/㎡) | 300 |
| Operating Power Source | AC85~264V(47-63Hz) |
| Frame Frequency(Frame/S) | 60 |
| Refresh Rate(Hz) | ≥1200 |
| Gray Level | RGB65536Grade |
| Brightness Adjustment Level | 256Grade |
| Brightness Adjustment Mode | Manual/Automatic/Programmable |
| Control Distance | UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km |
| Operating Temp | ﹣20℃－﹢50℃ |
| Operating Humidity | 10%－90%RH |
| Protecting Rating | IP65 |
| MTBF | ＞10000h |
| LED Life Span | ＞100000h |
| LED Best View distance | ８m-３０0m |
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
