Outdoor Advertising Scrolling Video Wall 6500 Nits IP65 Ph10 Real Pixel

Good quality Led Video Screen Rental for sales
Good quality Led Video Screen Rental for sales
Zhongyi is a trusted and professional supplier I have ever met.Thanks so much for your help to deal with my last urgent order.

—— Michael

I have bought twice from Andy, and the quality is great. Hope you guys can be better and better.

—— Dinesh

Good service!At one time,my flight case have crashed when shipping, thanks for doing maintenance and renew our screens.

—— Mohammed

I'm Online Chat Now

Outdoor Advertising Scrolling Video Wall 6500 Nits IP65 Ph10 Real Pixel

China Outdoor Advertising Scrolling Video Wall 6500 Nits IP65 Ph10 Real Pixel supplier

Large Image :  Outdoor Advertising Scrolling Video Wall 6500 Nits IP65 Ph10 Real Pixel

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Zhongyi
Certification: CE / RoHS / FCC / ETL / TUV
Model Number: ZFO10

Payment & Shipping Terms:

Minimum Order Quantity: 1 sqm
Price: negotiation
Packaging Details: Plywood cases
Delivery Time: 15-18 days after received prepayment
Payment Terms: 30% T/T prepayment, 70% T/T balance before shipment
Supply Ability: 3000 sqms per month
Contact Now
Detailed Product Description
Led: RGB Full Colr IC: MBI5020
Lamp: Nationstar Brightness: >6500 Nits
IP: IP65 Control System: Linsn
Control: By Computer Or U-disk Or Wifi Or 3G 4G Or Offline Support Distance: CAT5 <100m , Fiber >100M
Display Content: Texts,pics, Video Refrsh: 1920HZ

Advertising Scrolling Video Outdoor Led Advertising Screen 6500nits IP65 Ph10 Real Pixel

P10 outdoor led screen 960*960mm or 960*800mm
Meanwell power supplier
3 - 5 years warranty
Waterproof Neutrik connector
Fan cooling system
Epistar lamp Nationstar
High brightness >6500nits or 8000nits
Lamp board and driver board separate

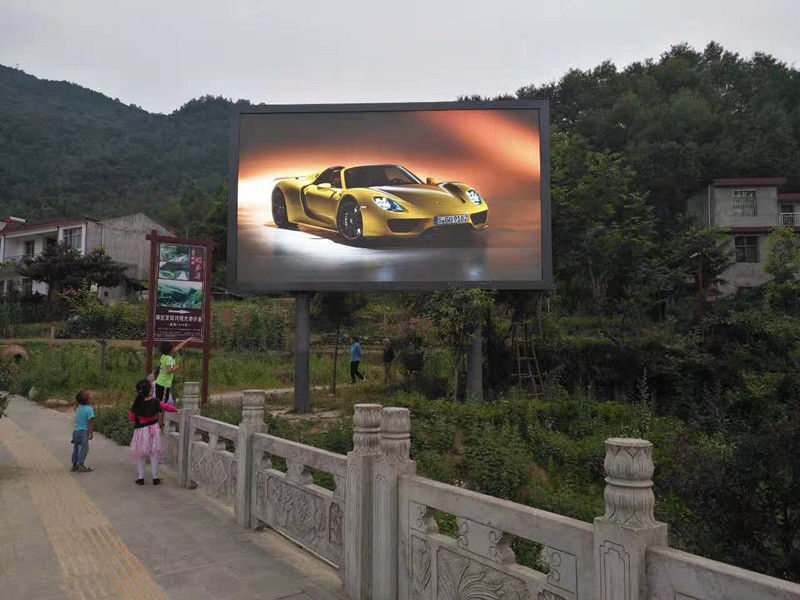

Currently P10 outdoor advertising led screen is the most popular in outdoor digital media application. It has advantages like customized display sizes, high definition, friendly user interface and multi-functional control methods.




The replace for modules costs few, without changing the original structure.

This unit cabinet offers a cost-effective display solution for outdoor usage.

It will operate at min Brightness also its save power .

The square shape product can be composed from the LED cabinet with the proportion of 16:9 and 4:3.

This LED cabinet only weighs 50kg and with depth of 191mm. That brings the benefits for the transportation.

The seamless design improves the display quality.

Featuring high resolution and high brightness, it can keep high contrast level even in strong sunlight.


RGB outdoor advertising led screen real pixel can be hanging, Stacking, Installation into the wall and so on. Also It can be designed as front open, front access screens to make the maintanance easy.


Full color P10 outdoor led video screens can satisfy all kinds of demands of outdoor commercial digital media. And it is hotseller in past few years. Also new ideas are used onto it like AR, Interactive....


P10 Outdoor LED Display

Pixel Pitch(㎜) 10
Pixel Density(pixel/㎡) 10000
Pixel Component 1R1G1B Epistar
LED Configuration SMD3535
Panel Dimension(W×H)㎜ 320*160 160*160
Scan Mode 1/4  1/2
Cabinet Dimension(W×H)㎜ 960*960 1280*960
Cabinet Material Iron/Customized
Brightness(cd/㎡) ≥6000 >8000
Color Temperature 3200K-9500K
Viewing Angle(V) 140°
Viewing Angle(H) 140°
Contrast Ratio 3000:1
Max Power Consumption(w/㎡) 750
Ave Power Consumption(w/㎡) 300
Operating Power Source AC85~264V(47-63Hz)
Frame Frequency(Frame/S) 60
Refresh Rate(Hz) ≥1200
Gray Level RGB65536Grade
Brightness Adjustment Level 256Grade
Brightness Adjustment Mode Manual/Automatic/Programmable
Control Distance UTP<100m;Muti Mode Fiber<500m;Single Mode Fiber<10Km
Operating Temp ﹣20℃-﹢50℃
Operating Humidity 10%-90%RH
Protecting Rating IP65
MTBF >10000h
LED Life Span >100000h
LED Best View distance 8m-300m


RGB outdoor advertising led screen real pixel video display has DIP and SMD lamp, two soution. Each has its own advantages.

Outdoor Advertising Scrolling Video Wall 6500 Nits IP65 Ph10 Real Pixel
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.

In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.

After-sale service:
1. Lifetime free maintenance and upgrade.
2. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
