Product Details:
Payment & Shipping Terms:
|
| Lamp: | DIP Or SMD | Module: | 192*192mm Or 160*160mm |
|---|---|---|---|
| Connector: | Seetronic | Warranty: | 2 Years Or Longer |
| Power Supplier: | Meanwell | Brightness: | 6500nits |
| Voltage: | 5V 40A | Weight: | 55kg Per Sqm |
| LED: | 1R1G1B Full Color |
360 Degree Curved Video Billboard Advertising LED Screen 6500nits 100-240V RGB Full Color Brightness Adjust
Customized Made Curved Led Video Wall
LED Chip:Apply well-know brand,for example:CREE,Epistar AXT etc.
Drive IC:MBI,Motolola,Toshiba,Hitachi etc.
Switch and power supply:apply special power supply of LED display,with overvoltage protection,Current protection,to make sure the display work steady and safe.
Outdoor 360 degree Round Led billboard Customized made
The size can be optional
Pixel Pitch: 5mm, 6mm, 8mm, 10mm, 12mm, 16mm,
Diameter can be Optional to meet the demands of clients
P12 specifications:
1. LED cabinet of die cast aluminum material, strong and good for hanging,ground install
2. LED lamps of DIP can be optional for Nationstar or other middle level quality, meet different quality request
3. High brightness above 5000nits, can well display color and photo,video display for whole strong sunshine day.
4. With avaiation power and data connector cables, keep screen working more stable and reliable.

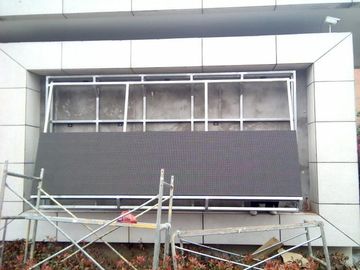

P12 Waterproof outdoor led video screen can be hanging, Stacking, Installation into the wall and so on. Also It can be designed as front open, front access screens to make the maintanance easy.
Feature:
1. Ultra bright LED lamp Nationstar, and the best raw materials to made into plastic parts.
2. Chip encapsulation uses pure golden wire to solder, red chip encapsulation uses double pure golden wires to keep stability. Led Chip Epistar Nichia Cree
3. The copper silvering trestle.
4. High-end specialized outdoor glue.
5. Brushing black lamp with five surface and black gluing to keep the uniformity of screen.
6. Plated signal and power connector.
7. Pure-copper environmental flat cable,pure-copper power wire.
High Brightness, Brightness adjust automatically
Meanwell Power supplier, Seetronic Connector
Feature
High quality LED chip and high anti-static electricity capacity.
Large viewing angle and smooth displaying provide excellent visual effect from every angle.
The integration of lamp and driving IC, together with with the multi-circuit structure, achieves evenly-distributed current, low power consumption and fast heat dissipation.
Ultra-high brightness, low attenuation, high reliability and weather ability.
Specification parameter
| P12 outdoor led video screen | |
| Module size | 192*192mm |
| Pixel pitch | 12mm |
| Pixel density | 6944dots/m2 |
| Pixel configuration | DIP 2R1G1B |
| Display color | Full color |
| PCB layer | Double layer |
| Led specification | Φ3ellipse |
| Pixel resolution | W:16dots*H:16dots |
| Cabinet | |
| Dimension | 960mm*960mm*170mm |
| Quantities of module | 25pcs |
| Power supply | 5pcs |
| Thermal discharge | Fan*2pcs |
| Total weight | 60kg |
| Best viewing angle | 10-150m |
| Temperature | Storage: -35°C~+85°C |
| Working: -35°C~+85°C | |
| Thickness | 17cm can adjustable |
| Remarks: cabinet size can changed, upon project need. | |
| Power | |
| Working voltage | AC220V/110V±10% |
| Average power consumption | 250-400W |
| Max. Power consumption | ≤1000W/sqm |
| Current | ≤20mA(single LED) |
| Control system | |
| CPU | Pentium4 or above |
| Type | LINSN |
| Operating system | WIN98/2000/NT/XP |
| Control method | Synchronization&Asynchronization |
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
