Product Details:
Payment & Shipping Terms:
|
| Led: | SMD Nationstar | Power Supplier: | Meanwell |
|---|---|---|---|
| Maintenance: | Front & Rear Maintenance | PCB: | 1.6mm Thickness 4 Layers |
| Cabinet Materials: | Die-casting Aluminum | Connnector: | Seetronic Cn-Link |
| Control System: | Nova | Cabinet Size: | Customized 1280mm 960mm 800mm 640mm |
| Support: | Text, Pics | Application: | Football, Soccer, Basketball Volleyball Games |
| Weight: | 45 KG Per Piece |
Front Maintenance Angle adjustable P10 Stadium Perimeter Led Display scan 1/2 Aluminum
Quick introduction:
SMD3535 P10 Die casting light weight cabinet
No ghosting,no mosaic
Front & Rear maintenance (no tool)
Over power protection
Super slim---high-strength,more slim than aluminum in the design,thiner around 30%
Anti-interference---special anti electromagnetic interference function
Fast cooling---excellent heat dissipation perormance to protet the modular circuit
High strength

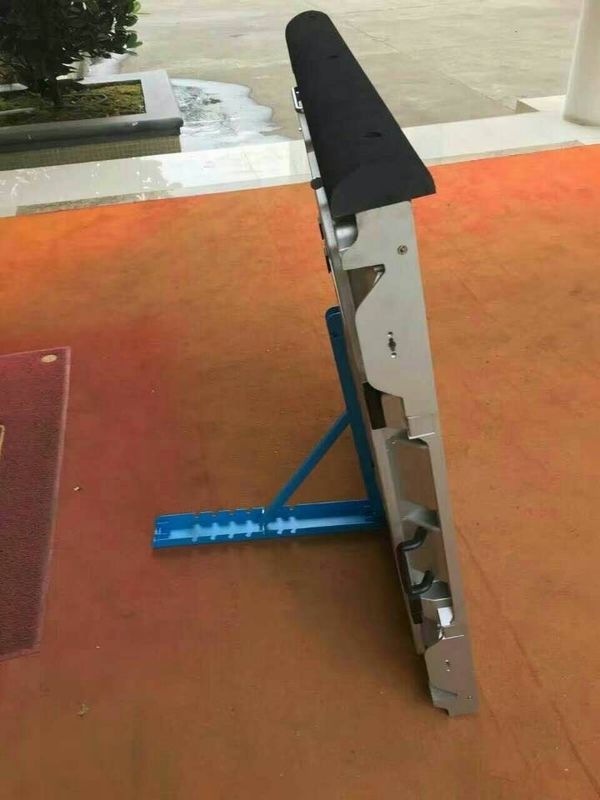

Angle adjustable
Rubber roof to protect players
Sports are more and more poular in recent years and stadium led display is the main advertising media when exciting games going on.The effect of advertising on live stadium led display is much better than other advertising media
Currently P10 stadium led displya is the most popular in outdoor digital media application. It has advantages like customized display sizes, high definition, friendly user interface and multi-functional control methods. .

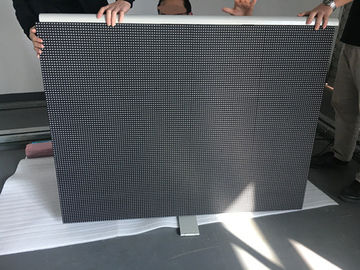

P10 Outdoor LED Display front maintenance
| Pixel pitch | 10mm |
| Led | 1R1G1B Real Pixel |
| Pixel Density(pixel/㎡) | 10000 |
| Led Chip | Epistar |
| LED Configuration | SMD3535 full color |
| Module | 320*320mm |
| Scan Mode | 1/2 |
| Cabinet Dimension(W×H)㎜ | 960*960mm 1280mm |
| Cabinet Material | Aluminum |
| Brightness(cd/㎡) | ≥7000 |
| Color Temperature | 3200K-9500K |
| Viewing Angle(V) | 140° |
| Viewing Angle(H) | 140° |
| Contrast Ratio | 3000:1 |
| Max Power Consumption(w/㎡) | 750 |
| Ave Power Consumption(w/㎡) | 300 |
| Operating Power Source | AC85~264V(47-63Hz) |
| Frame Frequency(Frame/S) | 60 |
| Refresh Rate(Hz) | ≥2000 |
| Gray Level | RGB65536Grade |
| Brightness Adjustment Level | 256Grade |
| Brightness Adjustment Mode | Manual/Automatic/Programmable |
| Control Distance | UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km |
| Operating Temp | ﹣20℃－﹢50℃ |
| Operating Humidity | 10%－90%RH |
| Protecting Rating | IP65 |
| MTBF | ＞10000h |
| LED Life Span | ＞100000h |
| LED Best View distance | ８m-300m |
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
