Product Details:
Payment & Shipping Terms:
|
| Pixel: | 1R1G1B1 Real Pixel | Module: | 256*128mm |
|---|---|---|---|
| IP: | IP65 Front , IP54 Rear | Warranty: | 2 Years Or Longer |
| Power Supplier: | Meanwell | Brightness: | 6500nits |
| Cooling: | Fan | Weight: | 55kg Per Sqm |
| LED: | 1R1G1B | ||
| Highlight: | flexible led screen,display led outdoor |
||
Fixed P8 SMD3535 Nationstar Scrolling Video Wall Outdoor Led Video Screen Front Maintenace
Outdoor P8 SMD Scan 1/4 High Brightness , Brightness adjust automatically
Meanwell Power supplier, Seetronic Connector
1.6mm thickness PCB 4 layers
1. Ultra bright LED lamp Nationstar, and the best raw materials to made into plastic parts.
2. Chip encapsulation uses pure golden wire to solder, red chip encapsulation uses double pure golden wires to keep stability. Led Chip Epistar Nichia Cree
3. The copper silvering trestle.
4. Pure-copper environmental flat cable,pure-copper power wire.
5. Brushing black lamp with five surface and black gluing to keep the uniformity of screen.
6. Plated signal and power connector.
7. High-end specialized outdoor glue.
P8 specifications:
1. LED cabinet of die cast aluminum material, strong and good for hanging,ground install
2. LED lamps of SMD3535 can be optional for Nationstar or other middle level quality, meet different quality request
3. High brightness above 5000nits, can well display color and photo,video display for whole strong sunshine day.
4. With avaiation power and data connector cables, keep screen working more stable and reliable.

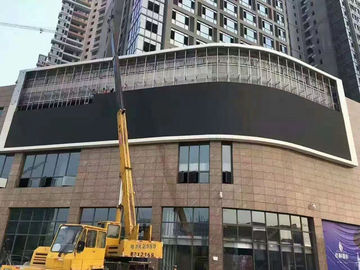

P8 Waterproof outdoor led video screen can be hanging, Stacking, Installation into the wall and so on. Also It can be designed as front open, front access screens to make the maintanance easy.
P8 Outdoor Fixed LED Display
| ITEM | P8 |
| Pixel Pitch(㎜) | 8 |
| Pixel Density(pixel/㎡) | 15625 |
| Pixel Component | 1R1G1B Epistar |
| LED Configuration | SMD3535 nationstar |
| Panel Dimension(W×H)㎜ | 256*128 |
| Scan Mode | 43104 |
| Cabinet Dimension(W×H)㎜ | 1024*1024/Customized |
| Cabinet Material | Iron/Customized |
| Brightness(cd/㎡) | ≥6500 |
| Color Temperature | 3200K-9500K |
| Viewing Angle(V) | 140° |
| Viewing Angle(H) | 140° |
| Contrast Ratio | 125.0006944 |
| Max Power Consumption(w/㎡) | 1100 |
| Ave Power Consumption(w/㎡) | 450 |
| Operating Power Source | AC85~264V(47-63Hz) |
| Frame Frequency(Frame/S) | 60 |
| Refresh Rate(Hz) | ≥1200 |
| Gray Level | RGB65536Grade |
| Brightness Adjustment Level | 256Grade |
| Brightness Adjustment Mode | Manual/Automatic/Programmable |
| Control Distance | UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km |
| Operating Temp | ﹣20℃－﹢50℃ |
| Operating Humidity | 10%－90%RH |
| Protecting Rating | IP65 |
| MTBF | ＞50000h |
| LED Life Span | ＞100000h |
| LED Best View distance | 5m-200m |
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
