Indoor Outdoor Use Refresh 1920HZ Led Video Screen Rental Good Uniformity 3.91mm 4.81mm
Detailed introduction:
SMD1921 outdoor led lamp
4 Layers PCB 1.6mm Thickness
High contrast Ratio 9:6 16:9
14-16 bits large Grey Scale
(P3.91)250*250mm,500*500mm,SMD1921
(P4.81)250*250mm,500*500mm or 500*1000mm SMD1921 SMD2727
>>>LED brand: Epistar from Taiwan
>>>Power supply: G-energy or Meanwell
>>>Control system:Novastar
Advanteges
1:Die-casting aluminum adopted to make the cabinet frame is for ensuring its brilliant hardness,precision and the terrific surface flatness of entire display.
2:Thickness only with 8cm,and weight with 11kg/cabinet make it really portable.
3:2 handy interiocks make the assembly of an entire screen really easy,which saves a lot of labor cost.
4:Working state indicator at backside makes it easy to know its working state without opening the backdoor.
5:Good thermal design,excellent heat dissipation even no fans installation.
Feature:
Durable Die-casting Cabinet
Great Uniformity and Grey Scale
Reliable quality and good performance
Quick Installation, quick Disassemble
Save Labour and Time
Easy and Fast maintenance

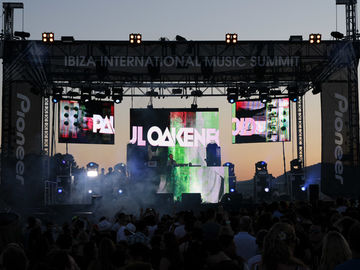

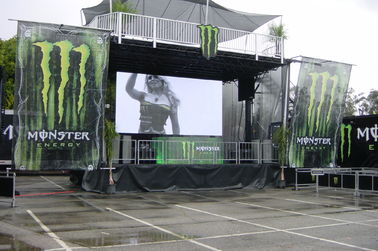

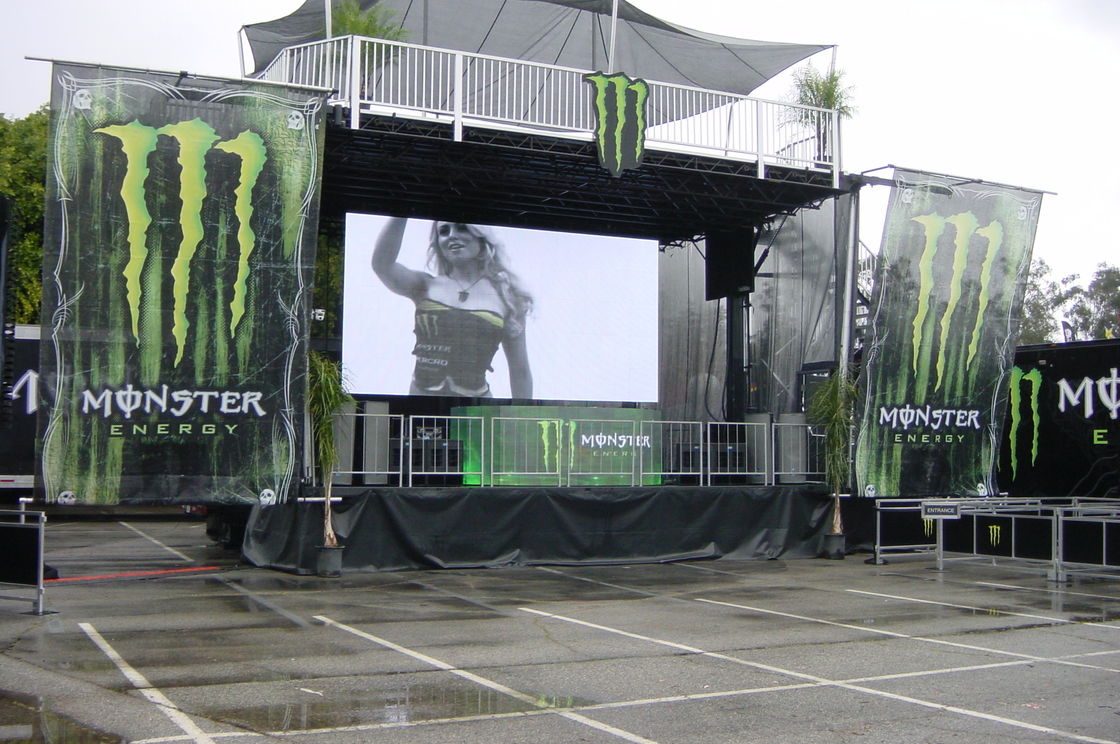

Portable rental led display are the superstar in the stage. It show the beauty of R,G,B colour. Now more and more events, audio&visual rental companies prefer to use durable rental led display because of its reliable quality, also amazing effect, which make the events getting a higher level.
| ITEM | P4.81 |
| Pixel Pitch(㎜) | 4.81 |
| Pixel Density(pixel/㎡) | 43264 |
| Pixel Component | 1R1G1B |
| LED Configuration | SMD2727 |
| Panel Dimension(W×H)㎜ | 250*250 |
| Scan Mode | 43113 |
| Cabinet Dimension(W×H)㎜ | 500*500 |
| Cabinet Material | Die-casting Aluminum |
| Cabinet Weight(Kg) | 8 |
| Brightness(cd/㎡) | ≥5000 |
| Color Temperature | 3200K-9500K |
| Viewing Angle(V) | 140° |
| Viewing Angle(H) | 140° |
| Contrast Ratio | 125.0006944 |
| Max Power Consumption(w/㎡) | ≤800 |
| Ave Power Consumption(w/㎡) | ≤400 |
| Operating Power Source | AC85~264V(47-63Hz) |
| Frame Frequency(Frame/S) | 60 |
| Refresh Rate(Hz) | ≥1920 |
| Gray Level | RGB65536Grade |
| Brightness Adjustment Level | 256Grade |
| | |
| Operating Temp | ﹣20℃－﹢50℃ |
| Operating Humidity | 10%－90%RH |
| Protecting Rating | IP65 |
| MTBF | ＞50000h |
| LED Life Span | ＞100000h |
| LED Best View distance | 5m-150m |
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Provide unique and professional solutions based on customer's requirement.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
