Product Details:
Payment & Shipping Terms:
|
Pixel Pitch: | 5mm, 6mm, 8mm, 10mm, 12mm, 16mm | Led Chip: | Epistar |
---|---|---|---|
Led: | SMD2727 | IC: | MBI5124 |
Power Supplier: | Meanwell, G-energy | Connector: | Seetronics |
Control System: | Linsn | Control: | By Computer Or U-disk Or Wifi Or 3G 4G Or Cloud Cluster |
Application: | Outdoor Street, Shops, Bulding | IP: | Ip65 Waterproof |
Defective Rate: | 0.0001 | Cabinet Materials: | Steel Or Aluminum |
Weight: | 55kgs/sqm |

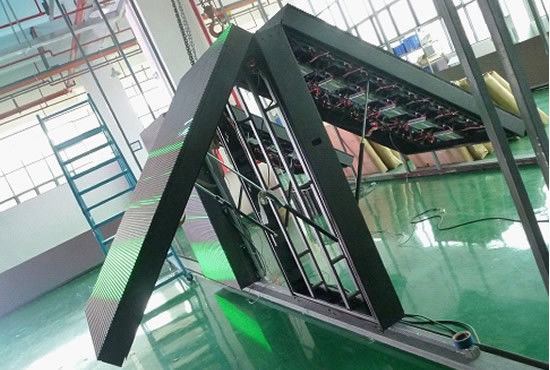

Digital billboard outdoor double sided led display for text, pics, video adertising display
Items | Parameter |
Pixel Picth | 10mm |
Configuration | 1R1G1B |
Module size | 160*160mm or 320*160mm |
Resolution | 10000dots/sqm |
Standard cabinet size | 960*960mm |
Cabinet weight | About 50KG |
Cabinet material | Iron or Aluminum |
Ave. Consumption | 690 w/sqm |
Max. Consumption | ≤850 w/sqn |
Brightness | More than 7000cd/sqm |
Grey Scale | 14 bit |
View Distance | 10-100 m |
View Angle | Horizontal: 120°, Vertical: 60° |
Power Supply | AC 110V/220V+-10% |
Drive Mode | 1/4Scan |
Refresh Rate | >1000 Hz/s |
Control System | LINSN |
Tolerance between modules | ≤1.5mm |
Storage Temperature | - 35°C ~ + 85°C |
Working Temperature | - 20°C ~ + 65°C |
Signal Interface | DVI |
MTBF | ≥10,000 hours |
Life span | ≥100,000 hours |
Operation Humidity | 10% ~ 95% |
Waterproof Grade | Front: IP65, Rear:54 |
Input source | DVI, S-video, RGB, VGA and etc |
Operation System | Windows98, 2000, ME, VISTA, XP |
Certifications | CE, CCC, ROHS, ISO9001, and other credit |
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
