Product Details:
Payment & Shipping Terms:
|
| Led Chip: | Cree | Led: | DIP346 |
|---|---|---|---|
| IC: | MBI5124 | Cabinet Size: | 960*960mm |
| Cabinet Materials: | Aluminum | Power Supplier: | Meanwell |
| Connector: | Neutrik | Brightness: | 6500 Nits |
| Refresh: | >1920 HZ | Scan: | 1/4 Or 1/2 |
| Density: | 10,000/ Sqm | Warranty: | 2 Years Or Longer |
| Grey: | 14-16 Bits | Control System: | Linsn Or Nova Or Colorlight |
| IP: | IP65 |
Feature:
With 85-264VAC large scale switching power supply input, typical value: 110VAC/220VAC.
Pixel pitch is 0.39 inch (10mm) for outdoor usage;

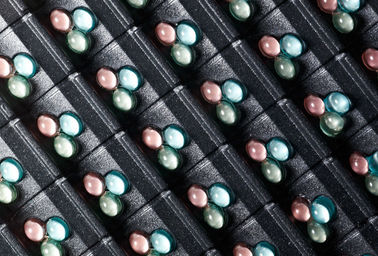

Popular DIP346 led type, 1 red 1 green and 1 blue, traditional dip type led;
Cabinet resolution are W 96 x H 96 dots, cabinet size is W 37.8 x H 37.8 inch;
More than 960Hz refreshing frequency and 14bit grey scale;
110 °Horizontal viewing angle and 55° vertical viewing angle;
Driving method is 1/4 can constant current;
Physical density: 929dots per square feet (10000 dots per square meters);
Module pixel configuration of W 32 × H 16 dots;
Module size is W 12.6 X H 6.3 inch (W 320 × H 160 mm);
Detailed Description:
1. High brightness DIP346 Led lamps are adopted, so the led screen has high brightness of 7000nits and you can see clearly from a long distance even in direct sunlight;
2. Static scanning technology and module design technology are adopted to offer higher reliability and stability;
Popular Application:

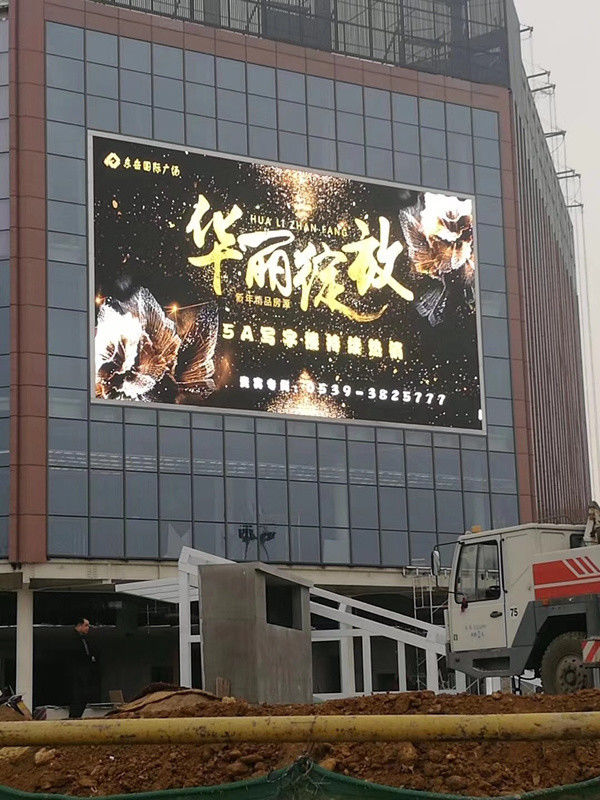

Commercial centers, railway stations and large-scale entertainment plazas;
1. Fast maintanance
2. Adopt grating air convection cooling system,good heat dissapation
3. Strict waterproof gurantee of quality IP65
4. Stablity quality and lifetime maintenance
5. DIP346 led screen waterproof
6. Anti-corrosion, UV resistant
7. Available - texts, pics, video advertising contents
8. Lamp board and driver board separate
P10 Outdoor LED Display
| ITEM | P10 |
| Pixel Pitch(㎜) | 10 |
| Pixel Density(pixel/㎡) | 10000 |
| Pixel Component | 1R1G1B |
| LED Configuration | SMD3535 DIP346 |
| Panel Dimension(W×H)㎜ | 320*160 |
| Scan Mode | 1/4 (or 1/2) |
| Cabinet Dimension(W×H)㎜ | 960*960/Customized |
| Cabinet Material | Iron/Customized |
| Brightness(cd/㎡) | ≥6000 ( or ≥7000) |
| Color Temperature | 3200K-9500K |
| Viewing Angle(V) | 140° |
| Viewing Angle(H) | 140° |
| Contrast Ratio | 3000:1 |
| Max Power Consumption(w/㎡) | 750 |
| Ave Power Consumption(w/㎡) | 300 |
| Operating Power Source | AC85~264V(47-63Hz) |
| Frame Frequency(Frame/S) | 60 |
| Refresh Rate(Hz) | ≥1200 |
| Gray Level | RGB65536Grade |
| Brightness Adjustment Level | 256Grade |
| Brightness Adjustment Mode | Manual/Automatic/Programmable |
| Control Distance | UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km |
| Operating Temp | ﹣20℃－﹢50℃ |
| Operating Humidity | 10%－90%RH |
| Protecting Rating | IP65 |
| MTBF | ＞10000h |
| LED Life Span | ＞100000h |
| LED Best View distance | ８m-300m |
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
