Real Pixel Stadium Perimeter Led Display Iron Cabinet 8000 Nits Waterproof

China Real Pixel Stadium Perimeter Led Display Iron Cabinet 8000 Nits Waterproof supplier

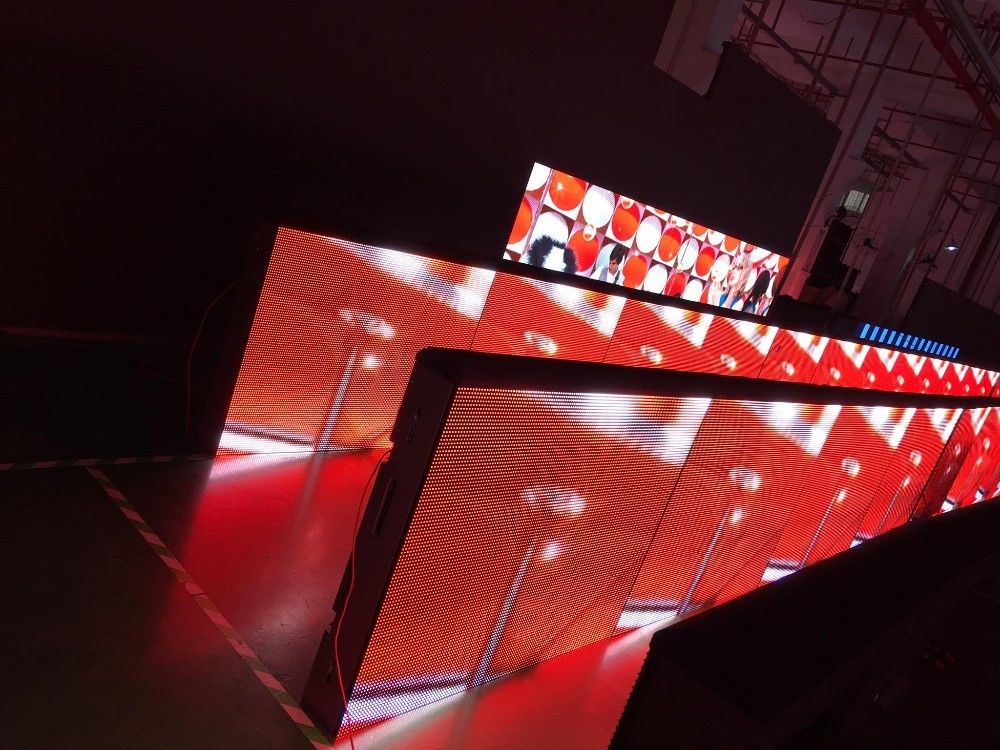

Large Image :  Real Pixel Stadium Perimeter Led Display Iron Cabinet 8000 Nits Waterproof

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Zhongyi
Certification: CE / RoHS / FCC / ETL / TUV
Model Number: ZFO10

Payment & Shipping Terms:

Minimum Order Quantity: 1 squaremeter
Price: Negotiation
Packaging Details: Plywood cartons
Delivery Time: 15-18 days after received prepayment
Payment Terms: 30% T/T prepayment, 70% T/T balance before shipment
Supply Ability: 3000 squaremeters per months
Contact Now
Detailed Product Description
Led: RGB Dip346 Power Supplier: Meanwell
Maintenance: Rear Access PCB: Driver Board And Lamp Board Separate
Cabinet Materials: Iron Connnector: Seetronic Cn-Link
Control System: Nova Cabinet Size: Customized 1280mm 960mm 800mm 640mm
Support: Text, Pics Application: Football, Soccer, Basketball Volleyball Games
Weight: 45 KG Per Piece

1R1G1B DIP P10 Real Pixel Stadium Perimeter Led Display Iron Cabinet 8000 nits Waterproof


1. raw materials
Anti-corrosion Anti-rust
Rubber Roof to protect Players
Angle adjustable to make audience see clear
Back up spare support

We use taiwan famous led chip brand Epistar andSilan.we guarantee the the raw materials are of good quality.
2. waterproof and high brightness
Can totally prevent from water and dust with grade IP 65,asl with brightness more than 8000cd/m2,even
against strong sunshine it still can provide the high brightness display effect.
3. perfect visual effect
The display effecrt is clear,vivid and good color consistency make it possible to be an excellent led display screen.
4. most cost-effective
There is no middleman and trading company here,we are pro led display manufacturer for more than 10 years,we sure our products are of good quality with a reasonable price.
5.wide range of application
P10 outdoor full color led display can meet the general requirements,It can be widely used in gym,plaza,shopping mall,bank,canteen,station and airport,it would be your ideal advertising LED board.

Quick introduction:

No ghosting,no mosaic

Over power protection

Stadium LED Display For Wolrd Cup Advertising , Super Clear Vision, With Large Viewing , lightweight
Anti-corrosion Anti-rust

Super slim---high-strength,more slim than aluminum in the design,thiner around 30%

Anti-interference---special anti electromagnetic interference function

Fast cooling---excellent heat dissipation perormance to protet the modular circuit

High strength


Multi-functional use for Stadium, rental, fixed installation
Hot back-up --no signal failable
Wide viewing angle
1. New design mask. The mask of display is of soft, toughness and high strength, achieving strong impact-resistant ability
2. High impact-resistance: Silicon rubber mask of tile can absorb the impact from balls or players.

3. Support degree is adjustable . The supporting stand can be adjusted between 75 to 90 degrees

4. Technology back-up. Dual-system and hot swap backup mechanism, improving the reliability of system greatly.

5. Meet all kinds of inclement weather of outdoor environment.antisepsis, waterproof, moisture-proof, antisnow. bear very low and hot temperature(-25ºC--+85ºC)

6. Multiform language editions, such as English, French, Germany, Greek, Russian and so on.

7. Can be connected with PC and the website, and also can be controlled remotely via wireless controller (it depend on the size of led display).

Sports are more and more poular in recent years and stadium led display is the main advertising media when exciting games going on.The effect of advertising on live stadium led display is much better than other advertising media


Currently P10 stadium led displya is the most popular in outdoor digital media application. It has advantages like customized display sizes, high definition, friendly user interface and multi-functional control methods. .


P10 Outdoor LED Display front maintenance

Pixel pitch 10mm
Led 1R1G1B Real Pixel
Pixel Density(pixel/㎡) 10000
Weight 55 Kg per pc
LED Configuration DIP346
Module 320*160mm
Scan Mode  1/4
Cabinet Dimension(W×H)㎜ 960*960mm 1280mm
Cabinet Material Steel
Brightness(cd/㎡)  ≥7000
Color Temperature 3200K-9500K
Viewing Angle(V) 140°
Viewing Angle(H) 140°
Contrast Ratio 3000:1
Max Power Consumption(w/㎡) 750
Ave Power Consumption(w/㎡) 300
Operating Power Source AC85~264V(47-63Hz)
Frame Frequency(Frame/S) 60
Refresh Rate(Hz) ≥2000
Gray Level RGB65536Grade
Brightness Adjustment Level 256Grade
Brightness Adjustment Mode Manual/Automatic/Programmable
Control Distance UTP<100m;Muti Mode Fiber<500m;Single Mode Fiber<10Km
Operating Temp ﹣20℃-﹢50℃
Operating Humidity 10%-90%RH
Protecting Rating IP65
MTBF >10000h
LED Life Span >100000h
LED Best View distance 8m-300m



Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.

In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.

After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
