Large UHD 2.97mm Indoor Rental LED Display Modular Scale SMD1515

China Large UHD 2.97mm Indoor Rental LED Display Modular Scale SMD1515 supplier

Large Image :  Large UHD 2.97mm Indoor Rental LED Display Modular Scale SMD1515

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Zhongyi
Certification: CE / RoHS / FCC / ETL / TUV
Model Number: ZRI297

Payment & Shipping Terms:

Minimum Order Quantity: 1 qms
Price: negotiation
Packaging Details: Flight case
Delivery Time: 26-30 working days after received prepayment
Payment Terms: 30% T/T prepayment, 70% T/T balance before shipment
Supply Ability: 3000 squaremeters per months
Contact Now
Detailed Product Description
Led: Nationstar Contrast: 4000:1
IC: MBI5252 MBI5024 Lamp: 1R1G1B Epistar
Voltage: 5V 60 A Brightness: >1000nits
Size: 500*500mm Materials: Die-casting Aluminum
Power Supplier: G-energy CE Installation: Stacking Hanging

Modular Large Scale UHD 2.97mm Indoor Rental LED Display SMD1515 Nationstar Front Access Event show


Brief introduce:

(1) Actual 2.6mm pixel pitch premium rental led panel;

(2) High definition of 147 456 pixels per square meter;

(3) Capacity to be curved +/-5 degrees for innovative designs;

(4) True black-faced Nationstar SMD2121 LED lamp for rich blacks and high contrast ;

(5) Uniform flat black mask ensuring a flush clean surface;

(6) 4K or even 8K UHD can be achieved;

(7) 3840Hz screen refresh rate ensuring no flick of the images;

(8) Easy front or back maintenance-change any part in under12 seconds;


Front maintenance fast replace

For Exhibition,Conference, Concert, Event, Show

Ce Certifications 16bits 1000nits 2880HZ Die-casting Aluminum

Hotsell SMD1515 Gold wire , Seetronics Connector, G-energy Power supplier



1. First-class LED chip: Epistar from Taiwan.
2. With pure golden wire connection in LED Nationstar.
3. Grand A row material for module frame and mask.
4. 4 layers PCB and copper plating thickness > 18mil.
5. Ag alloy solder paster to ensure good soldering on PCB.
6. Stainless steel screws when assembly.
7. Long-term Brightness capacity throughout product lifetime.
8. High Contrast 4000:1

1. Lightweight and slim, Fashion and Easy to assemble:

Fast installation, one cabinet within 5s;

Magnetic lock design for quick positioning and assembly;
Single technician and tool-free installation;

Light weight, 60% space saved for transportation;

Quick Return for Investment, time can reduce to half a year or even shorter;


2. Advanced Dot-by-dot calibration Technology, LED board with flash data storage function:

Enclosed noise-free design, applicable for high end and quiet places;

Snap design mask ensures stableness, flatness and easy maintenance;


Fast: Fast locks on the four edge of the cabinet, only 180 degree rolling will lock the closed two cabinets with high precision. Easy to assemble and disassemble the cabinets, fast, reliable and beautiful, it means true quick-assembling.
Easy: Modular design, easy to assembly and maintain.
Capacity:New design with exclusive cabinet, suitable for P2.6 or more.
Low: Wonderful design for natural heat releasing, no need for fans or air-conditioner, low noise, low structure cost because of the light weight of cabinets, low power dissipation, more cost saved.
Light:Cabinet size 500mmX500mmX80mm, and weight 8kg/pc. Only one hand can hold it, assembly time saved.
Thin: Die-cast aluminum design, high intensity, high tenacity, high precision, unchangeable, 80mm as the thickness, normal cabinet is >130mm.

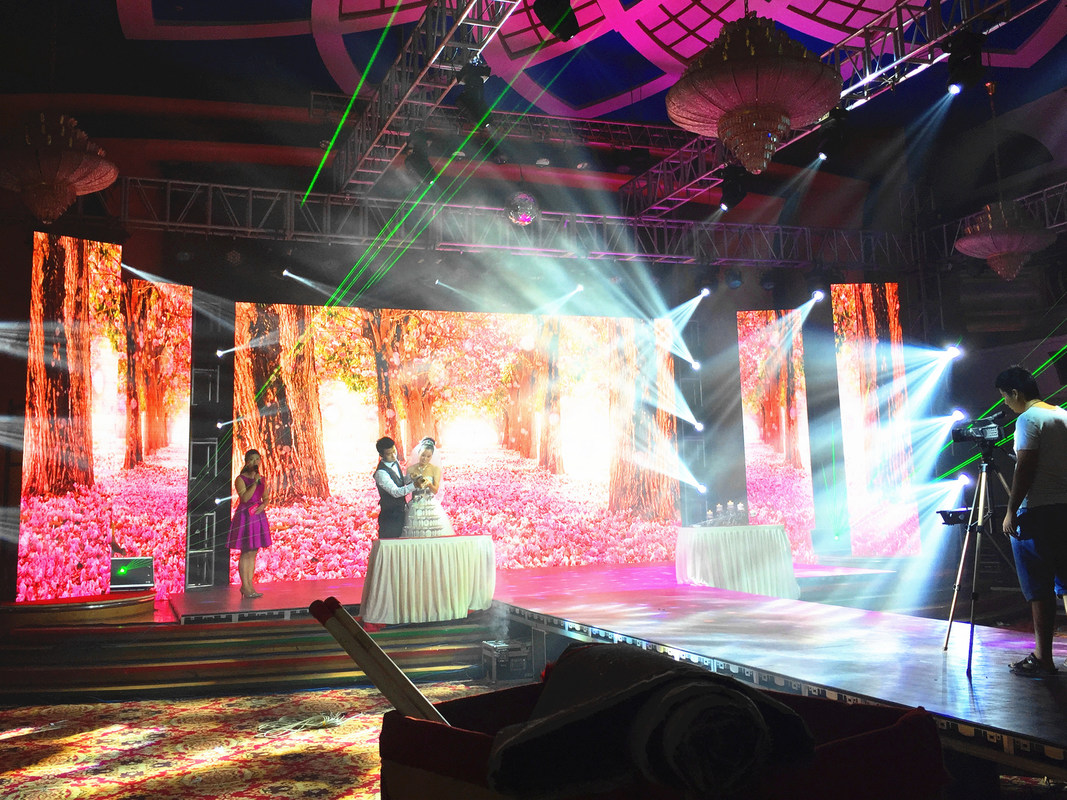

LED Video Wall Hire Solutions


A seamless LED video wall hiring from Ocolour is a turnkey solution to make a high-powered impact at your next event. We offer the high resolution LED video wall rentals for all sorts of events, and other corporate functions. Our LED Screens can be scaled from a small implementation to a large scale venue.


P2.6 High-Definition Led Display

Item Technical Parameters
Screen model OC-IDC-P2.6
Led encapsulation SMD2121
Led configuration 1R1G1B
Pixel pitch 2.6mm
Red chip Wavelength range: 620-630nm, 5nm;
Brightness range:500-900mcd
Green chip Wavelength range: 460-470nm, 4nm;
Brightness range: 1200-1500mcd
Blue chip Wavelength range: 520-530nm, 4nm;
Brightness range: 300-450mcd
Resolution 147456dots/sq.m
Maintenance Front-maintained
Brightness: >1200nits
Refreshing frequency: Hz >3840 Hz
Grey scale 16bit
Module pixel W 96 × H 96 dots
Module size W 250 × H 250 mm
Viewing angle Horizontal: 160°, Vertical: 160°
Cabinet material Aluminum/Iron
Lightness uniformity Pixel & module>90%
Cabinet color Customized
Driving method 1/32 scan constant current
Driving IC MBI5153
Power supply 85-264VAC, typical value: 110VAC/220VAC
Max consumption Max.≤89.12W/sq.ft (960W/㎡)
Average consumption Ave.: 29.73-44.59w/sq.ft(Ave.:320-480w/㎡)
Led life time ≥100000hours
Mean time to failure ≥5000hours
Module plainness ≤1mm
Pixel out of control less than 1/ 10⁻⁴, dispersion state
Working temperature -30ºC to +60ºC
Working humidity 20% to 90%
Waterproof IP lamp & top:IP65, other part:IP54
Protection function dampproof/dust-free/anti high temp/anti-thunder/ anti electromagnetic interference, etc
Certificate CCC /CE/UL/RoHS/Tuv
Hardware interface Standard PC network interface technology/U disc/3G
Display mode 24 bit true color
Colors 281 trillion colors
Colour processing ability ≥14bit
Color temperature 3000K ≤ TC ≤9000K, adjustable
Brightness regulating degrees continuously adjustable step by step through the software
Anty-Y correction curve Anti-γ correction system: 2.2-2.8 adjustable
Image adjust White balance/contrasting / hue control/ Single point brightness adjustment
Image processing mage noise reduction/ image enhancement/ image motion compensation/ Image color coordinate transformation processing/ Image passivation treatment
Correction technology Yes
Video mode AVI, WMV, MPG, MOV, DAT, VOB, MP4, FLV
Controlling platform



Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.

In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.

After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
