Product Details:
Payment & Shipping Terms:
|
| IP: | IP66 Front IP54 Rear | Maintenance: | Front & Rear |
|---|---|---|---|
| IC: | MBI5124 | Brightness: | >6500 Nits |
| Led Chip: | Cree Original | Control System: | Linsn |
| Control: | By Computer Or U-disk Or Wifi Or 3G 4G Or Offline | Support Distance: | CAT5 <100m , Fiber >100M |
| Feature: | Wireless Control | Refrsh: | 1920HZ |
IP66 6500nit RGB Full color Outdoor Led Advertising Screens Wireless control
Advantages
This unit cabinet offers a cost-effective display solution for outdoor usage.
It will operate at min Brightness also its save power .
The seamless design improves the display quality.
The replace for modules costs few, without changing the original structure.
The square shape product can be composed from the LED cabinet with the proportion of 16:9 and 4:3.
This LED cabinet only weighs 50kg and with depth of 191mm. That brings the benefits for the transportation.
Featuring high resolution and high brightness, it can keep high contrast level even in strong sunlight.

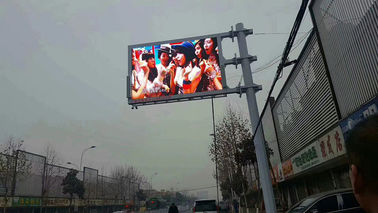

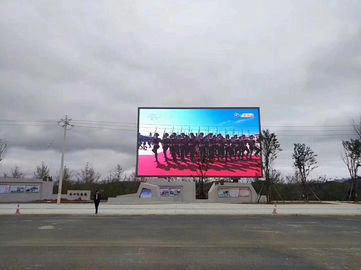

RGB outdoor advertising led screen real pixel can be hanging, Stacking, Installation into the wall and so on. Also It can be designed as front open, front access screens to make the maintanance easy.
Full color P10 outdoor led video screens can satisfy all kinds of demands of outdoor commercial digital media. And it is hotseller in past few years. Also new ideas are used onto it like AR, Interactive....
P10 Outdoor Front Access
| ITEM | P10 |
| Pixel Pitch(㎜) | 10mm |
| Pixel Density(pixel/㎡) | 10000 |
| Pixel Component | 1R1G1B Cree |
| LED Configuration | SMD3535 |
| Panel Dimension(W×H)㎜ | 320*320 |
| Scan Mode | 1/4 1/2 |
| Cabinet Dimension(W×H)㎜ | 960*960 1280*960 |
| Cabinet Material | Iron Aluminum |
| Brightness(cd/㎡) | ≥6000 >8000 |
| Color Temperature | 3200K-9500K |
| Viewing Angle(V) | 140° |
| Viewing Angle(H) | 140° |
| Contrast Ratio | 3000:1 |
| Max Power Consumption(w/㎡) | 750 |
| Ave Power Consumption(w/㎡) | 300 |
| Operating Power Source | AC85~264V(47-63Hz) |
| Frame Frequency(Frame/S) | 60 |
| Refresh Rate(Hz) | ≥1200 |
| Gray Level | RGB65536Grade |
| Brightness Adjustment Level | 256Grade |
| Brightness Adjustment Mode | Manual/Automatic/Programmable |
| Control Distance | UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km |
| Operating Temp | ﹣20℃－﹢50℃ |
| Operating Humidity | 10%－90%RH |
| Protecting Rating | IP65 |
| MTBF | ＞10000h |
| LED Life Span | ＞100000h |
| LED Best View distance | 8m-300m |
RGB outdoor advertising led screen real pixel video display has DIP and SMD lamp, two soution. Each has its own advantages.
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
