Product Details:
Payment & Shipping Terms:
|
| Application: | Background | Led: | SMD3535 |
|---|---|---|---|
| Led Chip: | Epistar | Cabinet Size: | 640*640mm |
| IC: | MBI5124 | Power Supplier: | G-energy |
| Weight: | 9KG |

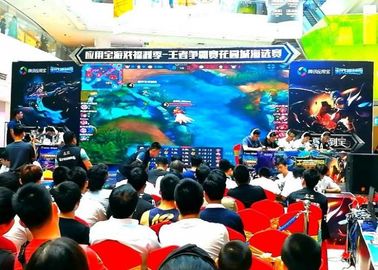

Outdoor P10 6000nits Rental LED Video Wall Screen Hire solution Stage Background
Real-time Error Detection
Low power consumption
P10 Rental LED Display | Low power,saving energy and money
Silent
P10 Rental LED Display | Silent, no cooling fans
High gray scale, high refresh
High Contrast
Super Slim and Light Weight
Feature:
1) LED: well-known international brand, with wide viewing angle, high brightness, little attenuation, good heat dissipation, and vivid colors.
2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective phenomena, such as dark bright, virtual light and so on.
3) Power supply: industrial-strength brand. The power t maximum power reserve of 20% the space, the range of voltage fluctuation is less 5%, high stability.
4) Connector: Aerial grade brands ensure the stable transmission of power and signal.
5) PCB Board: adopt 4-layer design.
6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person. The replacement of any cabinet can be done within 50 seconds.
Outdoor P10 rental led screen
1) High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light.
3) Big viewing angle to 140 degree at horizontal line, 140 degree at vertical line, you can see at every angle at this range, high brightness, high resolution, clear and non-flash screen image, long service life.
4) First debut of outdoor higher resolution diecasting cabinets
completely aluminum hanging structure eqivalent with heat dissipation
5)17 Kg/unit,borned for rental application
The special design features of the screens express the unique artistic charm, such as lightness, thinness and so on.
Application area
Outdoor advertising, digital billboards, advertising in big companies
Sports halls, fields, playgrounds.
Airports, bus stations and railway passenger terminals.
Facades of shopping malls, department stores, banks and car dealerships.
Architecture and social projects, information systems in cities.
Show-business, concerts, festivals, motor shows and other public events.
P10 Outdoor led screen Specifications:
| Pixel Pitch(㎜) | 10 |
| Pixel Density(pixel/㎡) | 25600 |
| Pixel Component | 1R1G1B |
| LED Configuration | SMD3535 |
| Panel Dimension(W×H)㎜ | 320*160 |
| Scan Mode | 43104 |
| Cabinet Dimension(W×H)㎜ | 640*640 |
| Cabinet Material | Die-casting Aluminum |
| Cabinet Weight(Kg) | 17 |
| Brightness(cd/㎡) | ≥5500 |
| Color Temperature | 3200K-9500K |
| Viewing Angle(V) | 140° |
| Viewing Angle(H) | 140° |
| Contrast Ratio | 125.0006944 |
| Max Power Consumption(w/㎡) | ≤750 |
| Ave Power Consumption(w/㎡) | ≤300 |
| Operating Power Source | AC85~264V(47-63Hz) |
| Frame Frequency(Frame/S) | 60 |
| Refresh Rate(Hz) | ≥1200 |
| Gray Level | RGB65536Grade |
| Brightness Adjustment Level | 256Grade |
| Brightness Adjustment Mode | Manual/Automatic/Programmable |
| Control Distance | UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km |
| Operating Temp | ﹣20℃－﹢50℃ |
| Operating Humidity | 10%－90%RH |
| Protecting Rating | Front IP65,Back IP54 |
| MTBF | ＞50000h |
| LED Life Span | ＞100000h |
| LED Best View distance | 5m-150m |
