Payment & Shipping Terms:
|Weigth:||45KG Per Sqm||Thickness:||105mm|
|Led Chip:||Epistar Silan||PCB:||1.6mm Thickness 4 Layers|
|Cabinet Materials:||Aluminum||Connnector:||Seetronic Cn-Link|
|Control System:||Nova||Cabinet Size:||Customized|
|Support:||Text, Pics||Application:||Football, Soccer, Basketball Volleyball Games|
|Main Power Cable:||2.5 Or 4 Square Millimeter||Control:||By Computer Synchronous|

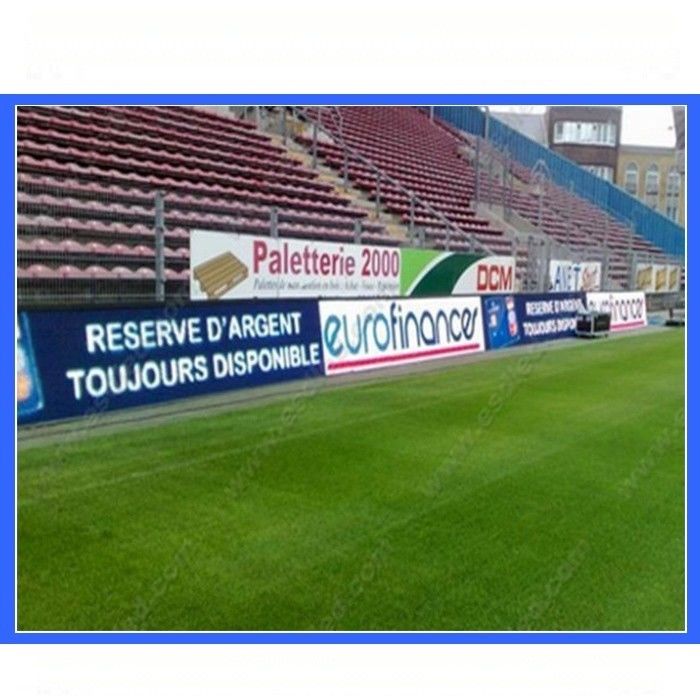

Live Broadcast Light weight Outdoor Stadium Perimeter Led Display Rubber Roof P16
Wide viewing angle
Rubber roof to protect players
High refresh, High brightness
Multi-functional use for Stadium, rental, fixed installation
1. Can be connected with PC and the website, and also can be controlled remotely via wireless controller (it depend on the size of led display).
2. Multiform language editions, such as English, French, Germany, Greek, Russian and so on.
3. Over power protection Anti-corrosion Anti-rust
4. Support degree is adjustable . The supporting stand can be adjusted between 75 to 90 degrees
8. Technology back-up. Dual-system and hot swap backup mechanism, improving the reliability of system greatly.
Sports are more and more poular in recent years and stadium led display is the main advertising media when exciting games going on.The effect of advertising on live stadium led display is much better than other advertising media
Currently P16 stadium led displya is the most popular in outdoor digital media application. It has advantages like customized display sizes, high definition, friendly user interface and multi-functional control methods. .
P16 front maintenance Outdoor LED Display
|Pixel pitch||16mm 1R1G1B Full color|
|Power supplier||Greatwall CE|
|LED Configuration||SMD3535 Epistar|
|Brightness(cd/㎡)||≥6000 ( or ≥7000)|
|Max Power Consumption(w/㎡)||750|
|Ave Power Consumption(w/㎡)||300|
|Operating Power Source||AC85~264V(47-63Hz)|
|Brightness Adjustment Level||256Grade|
|Brightness Adjustment Mode||Manual/Automatic/Programmable|
|Control Distance||UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km|
|LED Life Span||＞100000h|
|LED Best View distance||８m-300m
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
1. Tracking report in producing.
2. Quality test report for every order.
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
