Product Details:
Payment & Shipping Terms:
|
| Lamp: | SMD3535 | Power Supplier: | Meanwell |
|---|---|---|---|
| Maintenance: | Front & Rear Access | High Refresh: | 2880HZ |
| PCB: | 1.6mm Thickness 4 Layers | Cabinet Materials: | Aluminum |
| Connnector: | Seetronic Cn-Link | Control System: | Nova |
| Cabinet Size: | Customized 1280mm 960mm 800mm 640mm | Support: | Text, Pics |
| Application: | Football, Soccer, Basketball Volleyball Games | Weight: | 45 KG Per Piece |

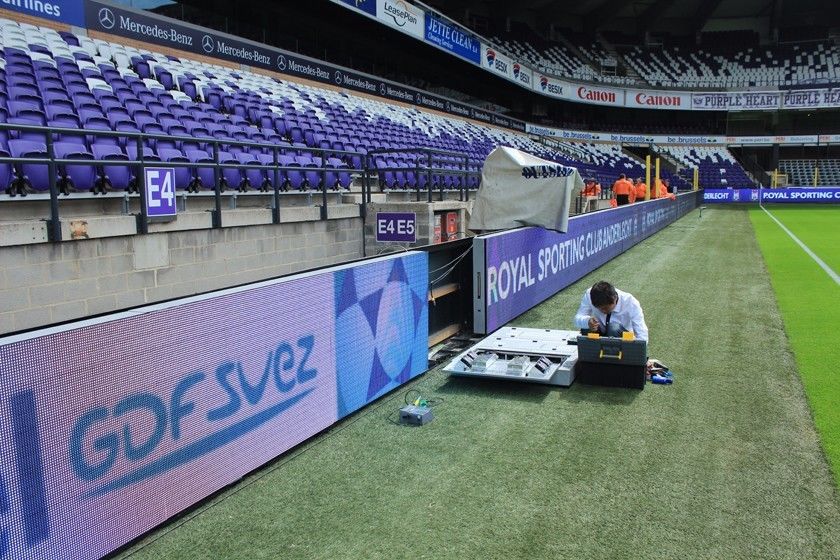

Front maintenance P10 IP65 Stadium Perimeter Led Display 1280mm High brightness 1/2 scaning
Quick introduction:
Sports are more and more poular in recent years and stadium led display is the main advertising media when exciting games going on.The effect of advertising on live stadium led display is much better than other advertising media
Currently P10 stadium led displya is the most popular in outdoor digital media application. It has advantages like customized display sizes, high definition, friendly user interface and multi-functional control methods. .
P10 Outdoor LED Display
| Pixel pitch | 10mm |
| IC | MBI5124 |
| Pixel Density(pixel/㎡) | 10000 |
| Power supplier | Greatwall CE |
| LED Configuration | SMD3535 full color |
| Warranty | 2 years |
| Scan Mode | 1/4 |
| Cabinet Dimension(W×H)㎜ | 960*960mm 1280mm |
| Cabinet Material | Aluminum |
| Brightness(cd/㎡) | ≥6000 ( or ≥7000) |
| Color Temperature | 3200K-9500K |
| Viewing Angle(V) | 140° |
| Viewing Angle(H) | 140° |
| Contrast Ratio | 3000:1 |
| Max Power Consumption(w/㎡) | 750 |
| Ave Power Consumption(w/㎡) | 300 |
| Operating Power Source | AC85~264V(47-63Hz) |
| Frame Frequency(Frame/S) | 60 |
| Refresh Rate(Hz) | ≥2000 |
| Gray Level | RGB65536Grade |
| Brightness Adjustment Level | 256Grade |
| Brightness Adjustment Mode | Manual/Automatic/Programmable |
| Control Distance | UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km |
| Operating Temp | ﹣20℃－﹢50℃ |
| Operating Humidity | 10%－90%RH |
| Protecting Rating | IP65 |
| MTBF | ＞10000h |
| LED Life Span | ＞100000h |
| LED Best View distance | ８m-300m |
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
