Product Details:
Payment & Shipping Terms:
|
| Weight: | 15kg Per Sqm | Resolution: | 4096 |
|---|---|---|---|
| Warranty: | 2 Years Or Longer | Work Temprature: | -35℃ -- -80℃ |
| Brightness: | 8500nits | IC Brand: | MBI |
| Control System: | Ydea | Maintenance: | Front & Rear Maintenance |
Slim and Light 8000nits Led Curtain DIP Led Display Mesh on External Glass Wall Anti-Wind

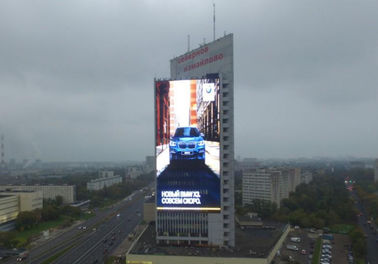

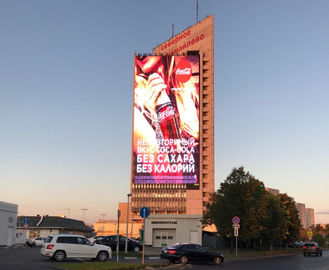

PH15.625 outdoor led display curtain display suitable for different facade of the buildings; it can be customized according to the shape of building and integration with the wall.
Very easy installation and maintenance, ultra-slim frame structure can achieve front and rear maintain according to the using environment which can save a lot maintain cost.
Led curtain display thickness is only 70mm, 2cm thickness of front maintain structure, 18kg/sqm of led curtain display which lighter 30-60% to the traditional led display. Reduce the construction load efficiency and reduce installation costs.
Aluminum alloy cabinet structure with high strength, no deformation, anti-corrosion characteristic. Adapt to a variety of climatic conditions, especially high temperature, high humidity environment.
Led curtain display adopted integrated, modular design achieve module or cabinet assemble and disassemble function.
Architectural contour and wall structure does not to be changed due to its lightweight and hollow design. It is also good for lighting.
Led curtain led display not only features lightweight structure but also has beautiful appearance which can be installed on the wall without any change.
Quick introduction:
Cost savings of Air conditioner
Cost savings 80% of maintain operation
Cost savings 70% of electricity
Cost savings 70% of steel structure
Cost savings 80% of labour
Cost savings 75% of transportation
PH15.625 outdoor led display curtain display suitable for different facade of the buildings; it can be customized according to the shape of building and integration with the wall.
Brief info:
Signal, power supply stability, the use of safe and reliable
Efficient and stable, high reliability, long service life
No fan design, low temperature operation, quiet no noise
Ultra-thin box, easy to transport, installation and maintenance
Support front and rear maintenance, installation more convenient
Low power consumption, low heat, energy saving and environmental protection
Fast maintenance
Patented design for 3 minutes/sqm
Easy to achieve front / rear maintenance
Special only led Grid Screen
Steel weight 10KG/sqm only, equal 15% of traditional outdoor led screen steel Cabinet
Transparency 40%-80%
Look like Screenless
Quick installation
Finish installation 10 seconds per sqm
Specification parameter P15.6 outdoor Led Curtain Fixed led Display
| Tube color | Specifications | Indicators (typical values, specific to selected lamps) |
| R | domestic | Wavelength: 618-630nm, brightness 870mcd (20mA) |
| G | domestic | Wavelength: 518-538nm, brightness 1680mcd (10mA) |
| B | domestic | Wavelength: 460-480nm, brightness 380mcd (10mA) |
| Product model | 15mm-15mm |
| Horizontal spacing(mm) Vertical spacing(mm) | 15.625mm 15.625mm |
| Pixel composition | DIP346 |
| Resolution (dot/㎡) | 4096 |
| Unit cabinet dots | 2048 |
| Pixel per Unit(dots) | 32(W)x64(H) |
| Color Grayscale (Bit) | 14 |
| Brightness(CD/㎡) | ≥8500cd |
| Contrast | 1:1600 |
| Color temperature | 6500-9300k |
| (Brightness adjust) | 0-255 |
| Horizontal viewing angle(°) Vertical viewing angle(°) | ≥110° ≥50° |
| The best viewing distance(M) | 15-300 |
| Max Consumption(W/㎡) | 450 |
| Average power consumption(W/㎡) | 135 |
| Unit cabinet Weight (kg/pcs) | 10.0 |
| Cabinet Weight (kg/㎡) | 20.0 |
| Frame Weight (kg/㎡) | 8.0 |
| Unit cabinet thickness (cm) | 6.7 |
| Frame thickness (cm) | 6.0 |
| Installation thickness (cm) | 12.7 |
| Strips width(mm) | 9.8 |
| Transparent Rate(%) | 40% |
| Frame rate(HZ) | 60 |
| Pixel uncontrol rate | ＜1/10000 |
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
