Meanwell Power Supplier CE Outdoor DIP Led Display Waterproof 1R1G1B IP65 Vivid Video
1. This LED cabinet only weighs 40kg and with depth of 100mm. That brings the benefits for the transportation.
2. P10 High reliable full colour outdoor DIP led display, have the size of 960mm and 960mm or others.
3. The square shape product can be composed from the LED cabinet with the proportion of 16:9 and 4:3.
4. The seamless design improves the display quality.
5. Featuring high resolution and high brightness, it can keep high contrast level even in strong sunlight.
6. The replace for modules costs few, without changing the original structure.
7. This unit cabinet offers a cost-effective display solution for outdoor usage.

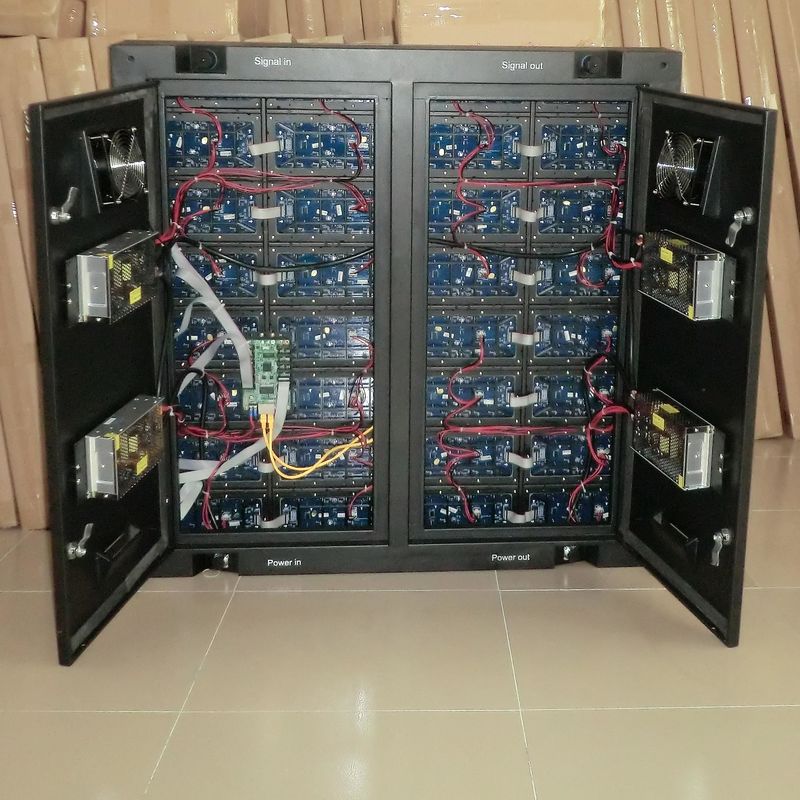

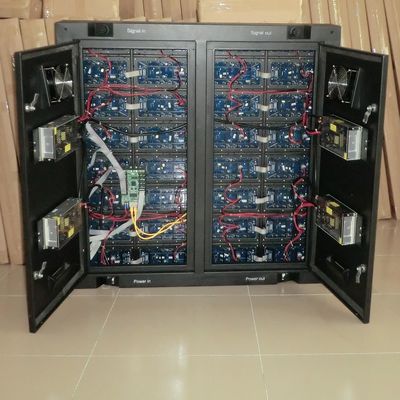

8. Lamp board and driver board separate

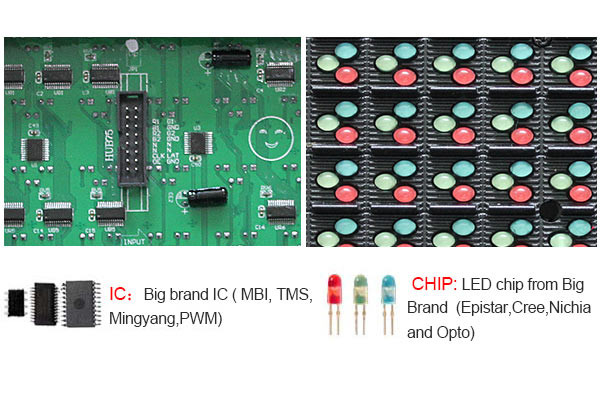

LED Chip Epistar Silan
Meanwell Power supplier
High reliable Waterproof Connector
Good Waterproof, Anti-UV
Driver board and Lamp board separate
Customized LED Screen size
1R1G1B Full color 14-16 bits
Long lifetime, Easy to do maintance
Full color P10 high reliable full colour outdoor DIP led display can satisfy all kinds of demands of outdoor commercial digital media. And it is hotseller in past few years. Also new ideas are used onto it like AR, Interactive....
Currently P10 High reliable full colour outdoor DIP led display is the most popular in outdoor digital media application. It has advantages like customized display sizes, high definition, friendly user interface and multi-functional control methods.
P10 Outdoor fixed led display can be hanging, Stacking, Installation into the wall and so on. Also It can be designed as front open, front access screens to make the maintanance easy.
P10 Outdoor DIP Led Screen
|Power supplier||Meanwell CE|
|Scan Mode||1/4 1/2|
|Max Power Consumption(w/㎡)||800|
|Ave Power Consumption(w/㎡)||350|
|Operating Power Source||AC85~264V(47-63Hz)|
|Brightness Adjustment Level||256Grade|
|Brightness Adjustment Mode||Manual/Automatic/Programmable|
|Control Distance||UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km|
|LED Life Span||＞100000h|
|LED Best View distance||８m-３０0m|
