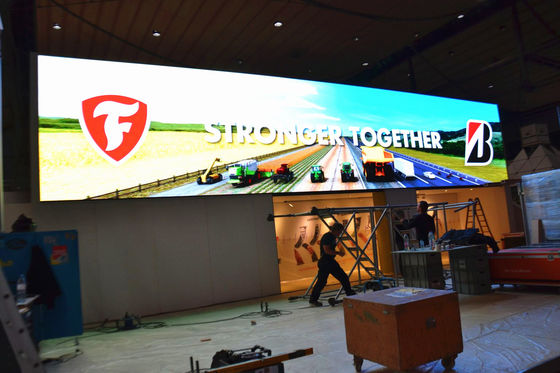

Full color Fixed Installation P5 SMD Led Video Wall Screen Front maintenance for Church
Quick details
Cabinet size customized (720p,1080P)
Nationstar led lamp SMD3528
MBI Ic from Taiwan
Meanwell power supplier 5V 60A
CE & UL certifications
Magnetic front maintenance led screen
Classical design and natural tech., reliable quality and great performance.
Seamless connecting tech., screen flatness error <0.1mm.
Patented mask, eliminating the dark spots, improving consistency and viewing angle.
PCB 1.6mm Thickness 4 layers
Feature
1. The first level LED chip from Taiwan Epistar
2. With pure golden wire connection in LED
3. Grand A row material for module frame and mask
4. 4 layers PCB and copper plating thickness > 18mil
5. Stainless steel screws when assembly
6. Disassembly and assembly are quick and easy
7. 3 to 5 years warranty
8 .Energy-saving 60% : driving with low frequency current, heat-dissipated roller fans with automatic temperature-controlling device.
Low Cost of Splicing
With an aspect ratio of 16:9, panel size is carefully designed so that the HD LED display can be assembled quickly and efficiently into the common display ratio of 4:3 or 16:9
Indoor fixed led screen has many kinds of installation, like front open design, magnetic led panel design. It can be used all kinds shopping malls, night clubs, conference and so on.
P5 Indoor Led Screen
| Pixel Pitch(㎜) |
5 |
| Pixel Density(pixel/㎡) |
40000 |
| Pixel Component |
1R1G1B |
| LED Configuration |
SMD3528 |
| Panel Dimension(W×H)㎜ |
320*160 |
| Cabinet Material |
Steel |
| Cabinet Weight(Kg) |
10 |
| Brightness(cd/㎡) |
≥1000 |
| Color Temperature |
3200K-9500K |
| Viewing Angle(V) |
140° |
| Viewing Angle(H) |
140° |
| Contrast Ratio |
3000:1 |
| Max Power Consumption(w/㎡) |
≤800 |
| Ave Power Consumption(w/㎡) |
≤480 |
| Operating Power Source |
AC85~264V(47-63Hz) |
| Frame Frequency(Frame/S) |
60 |
| Refresh Rate(Hz) |
≥1200 |
| Gray Level |
RGB65536Grade |
| Brightness Adjustment Level |
256Grade |
| Brightness Adjustment Mode |
Manual/Automatic/Programmable |
| Control Distance |
UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km |
| Operating Temp |
﹣20℃－﹢50℃ |
| Operating Humidity |
10%－90%RH |
| Protecting Rating |
IP31 |
| MTBF |
＞50000h |
| LED Life Span |
＞100000h |
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Provide unique and professional solutions based on customer's requirement.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
