Advertising Scrolling Outdoor Led Video Screen SMD3535 P8 White Balance

China Advertising Scrolling Outdoor Led Video Screen SMD3535 P8 White Balance supplier

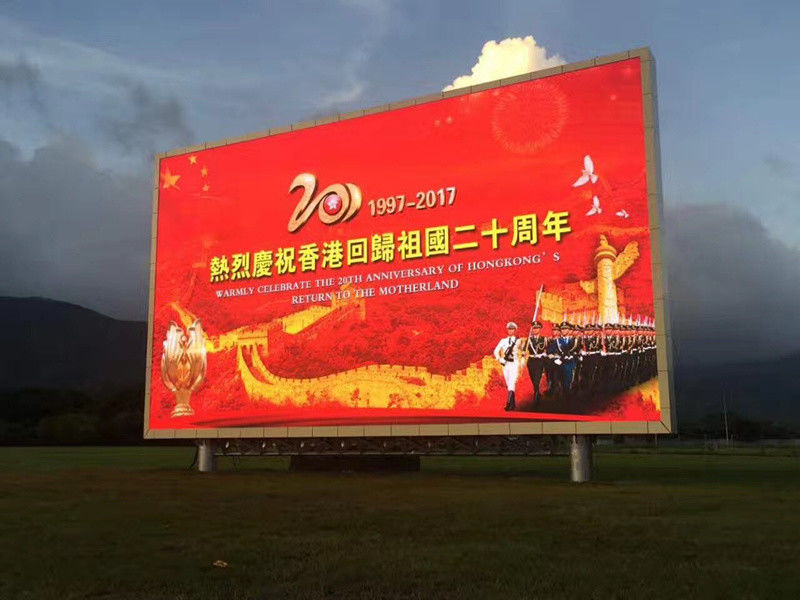

Large Image :  Advertising Scrolling Outdoor Led Video Screen SMD3535 P8 White Balance

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Zhongyi
Certification: CE / RoHS / FCC / ETL / TUV
Model Number: ZFO8

Payment & Shipping Terms:

Minimum Order Quantity: 1 squaremeter
Price: negotiation
Packaging Details: Plywood cartons
Delivery Time: 15-18 days after received prepayment
Payment Terms: 30% T/T prepayment, 70% T/T balance before shipment
Supply Ability: 3000 squaremeters per months
Contact Now
Detailed Product Description
Pixel: Epistar SMD Module: 256*128mm Or 320*320mm
IP: IP65 Front , IP54 Rear Warranty: 2 Years Or Longer
Power Supplier: Meanwell Brightness: 6500nits
Contents: Picture, Vivid Video Weight: 55kg Per Sqm
LED: 1R1G1B

Advertising Scrolling Video Led SMD3535 P8 Outdoor Led Video Screen on Building


Specifications
100-240V Meanwell Power supplier, Seetronic Connector
Colorful Flat cable, high reliable
4 pcs of fans for Cooling system

Outdoor P8 SMD Scan 1/4 High Brightness , Brightness adjust automatically
1.6mm thickness PCB 4 layers
1. Ultra bright LED lamp Nationstar, and the best raw materials to made into plastic parts.
2. Chip encapsulation uses pure golden wire to solder, red chip encapsulation uses double pure golden wires to keep stability. Led Chip Epistar Nichia Cree
3. The copper silvering trestle.
4. Pure-copper environmental flat cable,pure-copper power wire.
5. Brushing black lamp with five surface and black gluing to keep the uniformity of screen.
6. Plated signal and power connector.
7. High-end specialized outdoor glue.


P8 specifications:
1. LED cabinet of die cast aluminum material, strong and good for hanging,ground install
2. LED lamps of SMD3535 can be optional for Nationstar or other middle level quality, meet different quality request
3. High brightness above 5000nits, can well display color and photo,video display for whole strong sunshine day.
4. With avaiation power and data connector cables, keep screen working more stable and reliable.

P8 Waterproof outdoor led video screen can be hanging, Stacking, Installation into the wall and so on. Also It can be designed as front open, front access screens to make the maintanance easy.


Advantages:
Easy maintenance
High reliable quality
Iron cabinet customized size
Adopt grating air convection cooling system,good heat dissapation
Strict waterproof gurantee of quality IP65
Strict quality control, white balance
Strict testing, waterproof testing, Aging testing, White balance test, High /low grey test



P8 Outdoor Fixed LED Display

ITEMP8
Pixel Pitch(㎜)8
Pixel Density(pixel/㎡)15625
Pixel Component1R1G1B Epistar
LED ConfigurationSMD3535 nationstar
Panel Dimension(W×H)㎜256*128mm or 320*320mm
Scan Mode43104
Cabinet Dimension(W×H)㎜1024*1024/Customized
Cabinet MaterialIron/Customized
Brightness(cd/㎡)≥6500
Color Temperature3200K-9500K
Viewing Angle(V)140°
Viewing Angle(H)140°
Contrast Ratio125.0006944
Max Power Consumption(w/㎡)1100
Ave Power Consumption(w/㎡)450
Operating Power SourceAC85~264V(47-63Hz)
Frame Frequency(Frame/S)60
Refresh Rate(Hz)≥1200HZ 1920HZ
Gray LevelRGB65536Grade 14-16 bits
Brightness Adjustment Level256Grade
Brightness Adjustment ModeManual/Automatic/Programmable
Control DistanceUTP<100m;Muti Mode Fiber<500m;Single Mode Fiber<10Km
Operating Temp﹣20℃-﹢50℃
Operating Humidity10%-90%RH
Protecting RatingIP65
MTBF>50000h
LED Life Span>100000h
LED Best View distance5m-200m



Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.

In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
