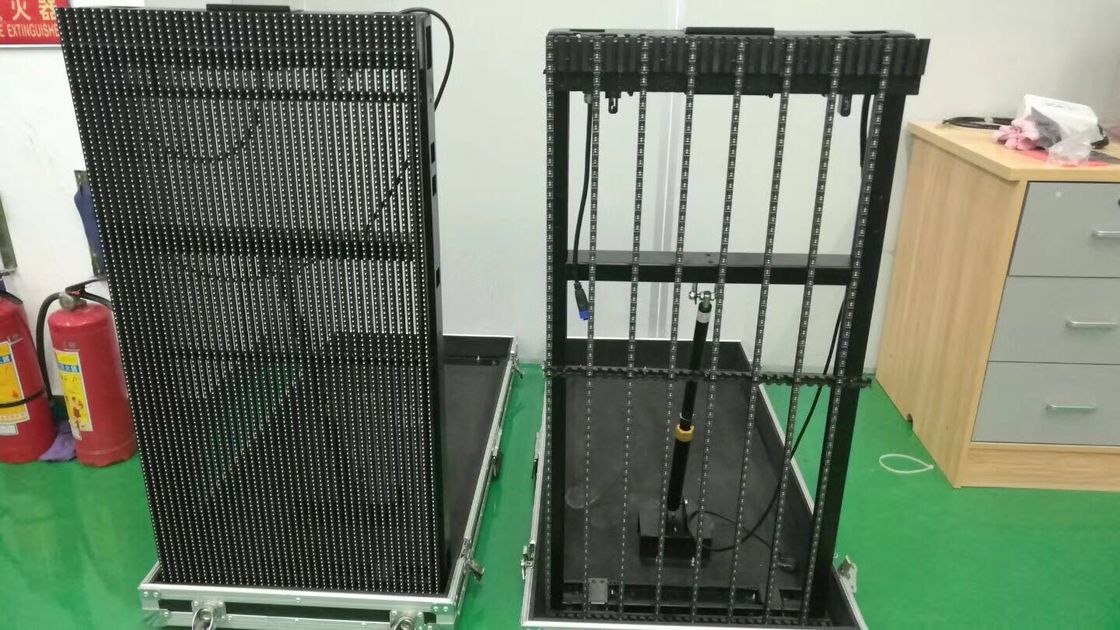

Low Temprature Transparent LED Curtain Outdoor Fixed Grid DIP IP67 CE
-
-
Large Image :
Low Temprature Transparent LED Curtain Outdoor Fixed Grid DIP IP67 CE
|
Product Details:
| Place of Origin: |
Shenzhen, China |
| Brand Name: |
Zhongyi |
| Certification: |
CE / RoHS / FCC / ETL / TUV |
| Model Number: |
ZF15 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 squaremeter |
| Price: |
negotiation |

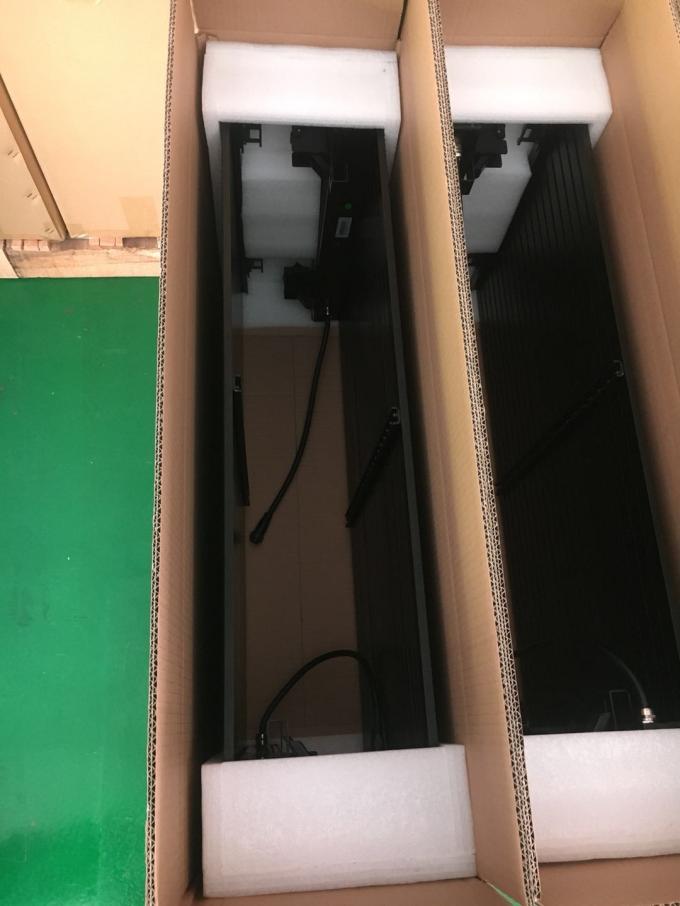

| Packaging Details: |
Plywood cartons |
| Delivery Time: |
15-18 days after received prepayment |
| Payment Terms: |
30% T/T prepayment, 70% T/T balance before shipment |
| Supply Ability: |
3000 squaremeters per months |
|
Detailed Product Description
| Lamp: |
DIP346 |
Resolution: |
4096 |
| Warranty: |
2 Years Or Longer |
Work Temprature: |
-35℃ -- -80℃ |
| Brightness: |
8500nits |
Weight: |
15kg Per Sqm |
| IC Brand: |
MBI |
Control System: |
Ydea |
| Maintenance: |
Front & Rear Maintenance |
| Highlight: |
led full color p10, smd outdoor led display |

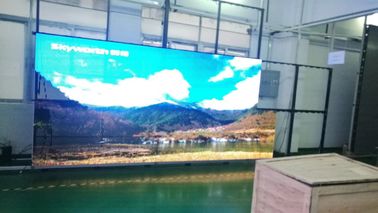

Low Temprature Transparent LED Curtain Outdoor Fixed Led Display Grid Screen DIP IP67 CE
Quick introduction:
Cost savings of Air conditioner
Cost savings 80% of maintain operation
Cost savings 70% of electricity
Cost savings 70% of steel structure
Cost savings 80% of labour
Cost savings 75% of transportation
Brief info:
Signal, power supply stability, the use of safe and reliable
Efficient and stable, high reliability, long service life
No fan design, low temperature operation, quiet no noise
Ultra-thin box, easy to transport, installation and maintenance
Support front and rear maintenance, installation more convenient
Low power consumption, low heat, energy saving and environmental protection
Great reliable quality
-35℃ -- -80℃
80% heat sinking
IP65
Fast maintenance
Patented design for 3 minutes/sqm
Easy to achieve front / rear maintenance
Special only led Grid Screen
Steel weight 10KG/sqm only, equal 15% of traditional outdoor led screen steel Cabinet
Transparency 40%-80%
Look like Screenless
Quick installation
Finish installation 10 seconds per sqm
Specification parameter P15.6 outdoor Led Curtain Fixed led Display
| Tube color | Specifications | Indicators (typical values, specific to selected lamps) |
| R | domestic | Wavelength: 618-630nm, brightness 870mcd (20mA) |
| G | domestic | Wavelength: 518-538nm, brightness 1680mcd (10mA) |
| B | domestic | Wavelength: 460-480nm, brightness 380mcd (10mA) |
| Product model | 15mm-15mm |
| Horizontal spacing(mm) Vertical spacing(mm) | 15.625mm 15.625mm |
| Pixel composition | DIP346 |
| Resolution (dot/㎡) | 4096 |
| Unit cabinet dots | 2048 |
| Pixel per Unit(dots) | 32(W)x64(H) |
| Color Grayscale (Bit) | 14 |
| Brightness(CD/㎡) | ≥8500cd |
| Contrast | 1:1600 |
| Color temperature | 6500-9300k |
| (Brightness adjust) | 0-255 |
| Horizontal viewing angle(°) Vertical viewing angle(°) | ≥110° ≥50° |
| The best viewing distance(M) | 15-300 |
| Max Consumption(W/㎡) | 450 |
| Average power consumption(W/㎡) | 135 |
| Unit cabinet Weight (kg/pcs) | 10.0 |
| Cabinet Weight (kg/㎡) | 20.0 |
| Frame Weight (kg/㎡) | 8.0 |
| Unit cabinet thickness (cm) | 6.7 |
| Frame thickness (cm) | 6.0 |
| Installation thickness (cm) | 12.7 |
| Strips width(mm) | 9.8 |
| Transparent Rate(%) | 40% |
| Frame rate(HZ) | 60 |
| Pixel uncontrol rate | ＜1/10000 |
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
