16 Bits Refresh 4000HZ Ultra HD Narrow Pixel Pitch Led Display For TV Station
-
-
Large Image :
16 Bits Refresh 4000HZ Ultra HD Narrow Pixel Pitch Led Display For TV Station
|
Product Details:
| Place of Origin: |
Shenzhen, China |
| Brand Name: |
Zhongyi |
| Certification: |
CE / RoHS / FCC / ETL / TUV |
| Model Number: |
ZNI25 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 cabinet |
| Price: |
negotiatioin |
| Packaging Details: |
Plywood or Flight cases, 6 pcs in a flight cases(Recommend) |
| Delivery Time: |
28-32 working days after receiving your prepayment |
| Payment Terms: |
30% T/T prepayment, 70% T/T balance before shipment |
| Supply Ability: |
3000 squaremeter per month |
|
Detailed Product Description
| Cabinet: |
480*480mm |
Brightness: |
1000nits |
| Refresh: |
2880HZ Or 3840HZ |
Led Chip: |
Epistar |
| LED Lamp: |
SMD2020 Or SMD1515 |
IC: |
MBI5153 |
| Power Supplier: |
G-energy Or Chuanglian |
Connector: |
Neutrik Or Seetronics |
| Cabinet Materials: |
Die-casting |
Cabinet Weight: |
7.5 Kg Per Piece |
| Packing: |
Flight Case |
Warranty: |
2 Years Or Longer |
| IP: |
IP30 |
16 bits Refresh 4000HZ Contrast 4000:1 Ratio16:9 Ultra HD Narrow Pixel Pitch Led Display P2.5mm in TV station
Quick details
6 layers PCB 2.0mm thickness
Nationstar led lamp SMD2020
MBI Ic from Taiwan
CE Power supplier 5V 60A
Classical design and natural tech., reliable quality and great performance.
Seamless connecting tech., screen flatness error <0.1mm.
Patented mask, eliminating the dark spots, improving consistency and viewing angle.
Detailed Specifications:
1. With pure golden wire connection in LED - Nationstar
2. Grand A row material for module frame and mask
3. 6 layers PCB and copper plating thickness > 18mil
4. Stainless steel screws when assembly
5. Disassembly and assembly are quick and easy
6. 3 to 5 years warranty
7 .Energy-saving 60% : driving with low frequency current, heat-dissipated roller fans with automatic temperature-controlling device.
Ultra HD Narrow pixel pitch led screen are a trend in future, as led technology has been developped and revolution. Ultra HD p2.5 led screen is most hotseller in the market. We use best Epistar led chip and MBI high refresh IC, so that there is high grey 16 bits and no defective rate.

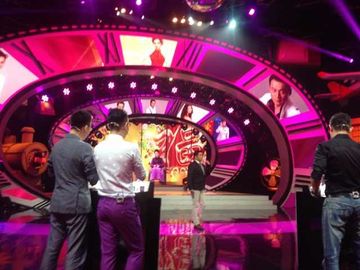

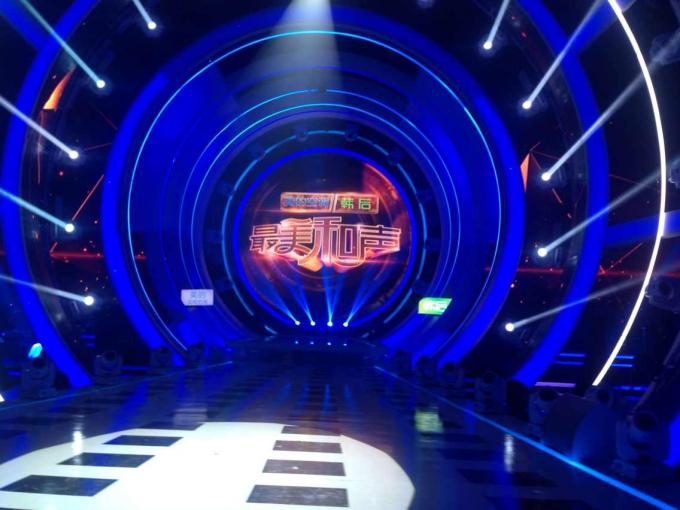

Now P2.5 ultra hd narrow pixel pitch led screens are widely used for Tv station ,conference and monitoring room...Also LED screen has its advantages like high brightness, good uniformity and grey,high contrast which beat DLP,LCD.. UHD-P2.5 | ITEM | P2.5 |
| Pixel Pitch(㎜) | 2.5 |
| Pixel Density(pixel/㎡) | 160000 |
| Pixel Component | 1R1G1B |
| LED Configuration | SMD2020 |
| Panel Dimension(W×H)㎜ | 160*160 |
| Scan Mode | 1/32 |
| Cabinet Dimension(W×H)㎜ | 480*480 |
| Cabinet Material | Die-casting Aluminum |
| Cabinet Weight(㎏) | 7.0 |
| Brightness(cd/㎡) | ≥1000( Color Temperature6500K) |
| Color Temperature | 3200K-9500K |
| Viewing Angle(V) | 160° |
| Viewing Angle(H) | 160° |
| Contrast Ratio | 3000:1 |
| Max Power Consumption(w/㎡) | 800 |
| Ave Power Consumption(w/㎡) | 480 |
| Operating Power Source | AC85~264V(47-63Hz) |
| Frame Frequency(Frame/S) | 60 |
| Refresh Rate(Hz) | ≥1920 |
| Gray Level | RGB65536Grade |
| Brightness Adjustment Level | 256Grade |
| Brightness Adjustment Mode | Manual/Automatic/Programmable |
| Control Distance | UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km |
| Operating Temp | ﹣20℃－﹢50℃ |
| Operating Humidity | 10%－90%RH |
| MTBF | ＞50000h |
| LEDLife Span | ＞100000h |
| LEDBest View distance | 5m-150m
|
Our Service:
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
