Indoor Grand A Seamless UHD Led Video Display P2 Die - Casting Cabinet CNC

China Indoor Grand A Seamless UHD Led Video Display P2 Die - Casting Cabinet CNC supplier

Large Image :  Indoor Grand A Seamless UHD Led Video Display P2 Die - Casting Cabinet CNC

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Zhongyi
Certification: CE / RoHS / FCC / ETL / TUV
Model Number: ZNI25

Payment & Shipping Terms:

Minimum Order Quantity: 1 cabinet
Price: negotiatioin
Packaging Details: Plywood or Flight cases, 6 pcs in a flight cases(Recommend)
Delivery Time: 28-32 working days after receiving your prepayment
Payment Terms: 30% T/T prepayment, 70% T/T balance before shipment
Supply Ability: 3000 squaremeter per month
Contact Now
Detailed Product Description
Pixel Pitch: PH2.5mm Brightness: 1000nits
Refresh: 2880HZ Or 3840HZ Led Chip: Epistar
LED Lamp: SMD2020 Or SMD1515 IC: MBI5153
Power Supplier: G-energy Or Chuanglian Connector: Neutrik Or Seetronics
Cabinet Materials: Die-casting Cabinet Weight: 7.5 Kg Per Piece
Packing: Flight Case Warranty: 2 Years Or Longer
IP: IP30

P2 Indoor High Refresh Seamless UHD Led Display Video wall Die-casting Cabinet CNC
Quick details
480*480mm Die-casting cabinet
Reliable quality
6 layers PCB 2.0mm thickness
Nationstar led lamp SMD2020
MBI Ic from Taiwan
CE Power supplier 5V 60A
Classical design and natural tech., reliable quality and great performance.
Seamless connecting tech., screen flatness error <0.1mm.
Patented mask, eliminating the dark spots, improving consistency and viewing angle.
Detailed Specifications:
1. With pure golden wire connection in LED - Nationstar
2. Grand A row material for module frame and mask
3. 6 layers PCB and copper plating thickness > 18mil
4. Stainless steel screws when assembly
5. Disassembly and assembly are quick and easy
6. 3 to 5 years warranty
7 .Energy-saving 60% : driving with low frequency current, heat-dissipated roller fans with automatic temperature-controlling device.
Ultra HD Narrow pixel pitch led screen are a trend in future, as led technology has been developped and revolution. Ultra HD p2.5 led screen is most hotseller in the market. We use best Epistar led chip and MBI high refresh IC, so that there is high grey 16 bits and no defective rate.

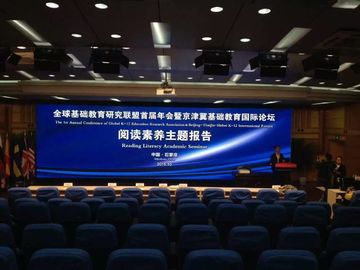

Now P2.5 ultra hd narrow pixel pitch led screens are widely used for Tv station ,conference and monitoring room...Also LED screen has its advantages like high brightness, good uniformity and grey,high contrast which beat DLP,LCD..

Pixel Pitch(㎜)2.5
Pixel Density(pixel/㎡)160000
Pixel ComponentEpistar RGB
LED ConfigurationSMD2020 Nationstar
Panel Dimension(W×H)㎜160*160
Scan Mode1/32
Cabinet Dimension(W×H)㎜480*480
Cabinet MaterialDie-casting Aluminum
Cabinet Weight(㎏)7.0
Brightness(cd/㎡)≥1000( Color Temperature6500K)
Color Temperature3200K-9500K
Viewing Angle(V)160°
Viewing Angle(H)160°
Contrast Ratio3000:1
Max Power Consumption(w/㎡)800
Ave Power Consumption(w/㎡)480
Operating Power SourceAC85~264V(47-63Hz)
Frame Frequency(Frame/S)60
Refresh Rate(Hz)≥1920
Gray LevelRGB65536Grade
Brightness Adjustment Level256Grade
Brightness Adjustment ModeManual/Automatic/Programmable
Control DistanceUTP<100m;Muti Mode Fiber<500m;Single Mode Fiber<10Km
Operating Temp﹣20℃-﹢50℃
Operating Humidity10%-90%RH
LEDLife Span>100000h
LEDBest View distance5m-150m

Our Service:
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.

In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.

After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
