IP65 Nationstar Outdoor Led Video Screen Permanent Full Color 192 * 192 MM

China IP65 Nationstar Outdoor Led Video Screen Permanent Full Color 192 * 192 MM supplier

Large Image :  IP65 Nationstar Outdoor Led Video Screen Permanent Full Color 192 * 192 MM

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Zhongyi
Certification: CE / RoHS / FCC / ETL / TUV
Model Number: ZFO6

Payment & Shipping Terms:

Minimum Order Quantity: 1 squaremeter
Price: negotiation
Packaging Details: Plywood cartons
Delivery Time: 15-18 days after received prepayment
Payment Terms: 30% T/T prepayment, 70% T/T balance before shipment
Supply Ability: 3000 squaremeters per months
Contact Now
Detailed Product Description
Lamp: SMD2727 1R1G1B Module: 192*192mm
IC: MBI5020 Warranty: 2 Years Or Longer
Power Supplier: Meanwell Brightness: 6500nits
Color: White, Black Weight: 55kg Per Sqm
LED: 1R1G1B Connector: Seetronic

Permanent Full color IP65 Nationstar Led wall Outdoor Led Video Screen Front maintenance 1/8



Outdoor P6 SMD Scan 1/8 High Brightness Brightness adjust automatically

1. Ultra bright LED lamp Nationstar, and the best raw materials to made into plastic parts.
2. Chip encapsulation uses pure golden wire to solder, red chip encapsulation uses double pure golden wires to keep stability. Led Chip Epistar Nichia Cree
3. The copper silvering trestle.
4. High-end specialized outdoor glue.
5. Brushing black lamp with five surface and black gluing to keep the uniformity of screen.
6. Plated signal and power connector.
7. Pure-copper environmental flat cable,pure-copper power wire.

8. 1.6mm thickness PCB 4 layers


Easy maintenance
High reliable quality
Iron cabinet customized size
Adopt grating air convection cooling system,good heat dissapation
Strict waterproof gurantee of quality IP65
Strict quality control, white balance
Strict testing, waterproof testing, Aging testing, White balance test, High /low grey test


P6 specifications:

1. LED cabinet of die cast aluminum material, strong and good for hanging,ground install

2. LED lamps of SMD2727 can be optional for Nationstar or other middle level quality, meet different quality request

3. High brightness above 5000nits, can well display color and photo,video display for whole strong sunshine day.

4. With avaiation power and data connector cables, keep screen working more stable and reliable.

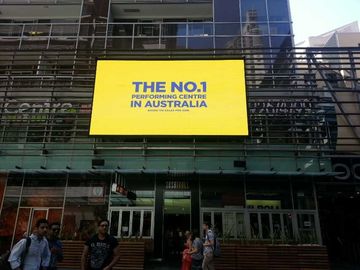

P6 Waterproof outdoor led video screen can be hanging, Stacking, Installation into the wall and so on. Also It can be designed as front open, front access screens to make the maintanance easy.


P6 Outdoor Fixed LED Display

Pixel Pitch(㎜) 6
Pixel Density(pixel/㎡) 27777
Pixel Component 1R1G1B
LED Configuration SMD3535
Panel Dimension(W×H)㎜ 192*192
Scan Mode 1/8
Cabinet Dimension(W×H)㎜ 576*768/Customized
Cabinet Material Iron/Customized
Brightness(cd/㎡) ≥6500
Color Temperature 3200K-9500K
Viewing Angle(V) 140°
Viewing Angle(H) 140°
Contrast Ratio 3000:1
Max Power Consumption(w/㎡) 1000
Ave Power Consumption(w/㎡) 380
Operating Power Source AC85~264V(47-63Hz)
Frame Frequency(Frame/S) 60
Refresh Rate(Hz) ≥1200
Gray Level RGB65536Grade
Brightness Adjustment Level 256Grade
Brightness Adjustment Mode Manual/Automatic/Programmable
Control Distance UTP<100m;Muti Mode Fiber<500m;Single Mode Fiber<10Km
Operating Temp ﹣20℃-﹢50℃
Operating Humidity 10%-90%RH
Protecting Rating IP65


Pre-sale service:

1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.

In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.

After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

IP65 Nationstar Outdoor Led Video Screen Permanent Full Color 192 * 192 MM
