Payment & Shipping Terms:
|Connector:||Seetronic||Warranty:||2 Years Or Longer|
|Voltage:||100-240V||Weight:||55kg Per Sqm|
Advertising Use Nationstar Video Wall Outdoor Led Video Screen Wifi Control Meanwell power supplier
High quality LED chip and high anti-static electricity capacity.
Large viewing angle and smooth displaying provide excellent visual effect from every angle.
Life time technical support, conditioned replacement and repairing 2 years.
The integration of lamp and driving IC, together with with the multi-circuit structure, achieves evenly-distributed current, low power consumption and fast heat dissipation.
Ultra-high brightness, low attenuation, high reliability and weather ability.
1.6mm thickness PCB 4 layers
1. Ultra bright LED lamp Nationstar, and the best raw materials to made into plastic parts.
2. Chip encapsulation uses pure golden wire to solder, red chip encapsulation uses double pure golden wires to keep stability. Led Chip Epistar Nichia Cree
3. The copper silvering trestle.
4. High-end specialized outdoor glue.
5. Brushing black lamp with five surface and black gluing to keep the uniformity of screen.
6. Plated signal and power connector.
7. Pure-copper environmental flat cable,pure-copper power wire.
Outdoor P6 SMD Scan 1/8 High Brightness , Brightness adjust automatically
Meanwell Power supplier, Seetronic Connector
1. LED cabinet of die cast aluminum material, strong and good for hanging,ground install
2. LED lamps of SMD2727 can be optional for Nationstar or other middle level quality, meet different quality request
3. High brightness above 5000nits, can well display color and photo,video display for whole strong sunshine day.
4. With avaiation power and data connector cables, keep screen working more stable and reliable.

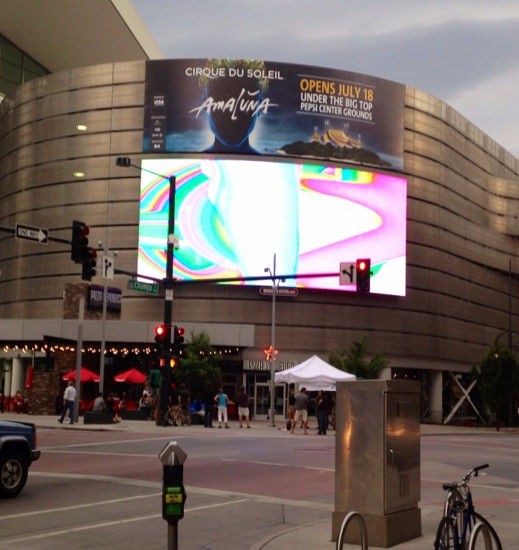

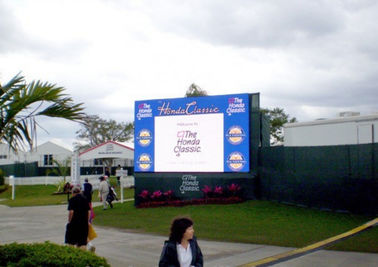

P6 Waterproof outdoor led video screen can be hanging, Stacking, Installation into the wall and so on. Also It can be designed as front open, front access screens to make the maintanance easy.
P6 Outdoor Fixed LED Display
|Pixel Component||1R1G1B Epistar Silan|
|LED Configuration||SMD3535 Nationstar|
|Cabinet Dimension(W×H)㎜||576*768 / Customized|
|Cabinet Material||Iron or Aluminum|
|Max Power Consumption(w/㎡)||1000|
|Ave Power Consumption(w/㎡)||380|
|Operating Power Source||AC85~264V(47-63Hz)|
|Brightness Adjustment Level||256Grade|
|Brightness Adjustment Mode||Manual/Automatic/Programmable|
|Control Distance||UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km|
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
1. Tracking report in producing.
2. Quality test report for every order.
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
