14 Bits Brightness 1000nits 4K UHD Led Display 4000HZ Refresh No Noise Large Scale TV Led TV Wall

Good quality Led Video Screen Rental for sales
Good quality Led Video Screen Rental for sales
Zhongyi is a trusted and professional supplier I have ever met.Thanks so much for your help to deal with my last urgent order.

—— Michael

I have bought twice from Andy, and the quality is great. Hope you guys can be better and better.

—— Dinesh

Good service!At one time,my flight case have crashed when shipping, thanks for doing maintenance and renew our screens.

—— Mohammed

I'm Online Chat Now

14 Bits Brightness 1000nits 4K UHD Led Display 4000HZ Refresh No Noise Large Scale TV Led TV Wall

China 14 Bits Brightness 1000nits 4K UHD Led Display 4000HZ Refresh No Noise Large Scale TV Led TV Wall supplier
14 Bits Brightness 1000nits 4K UHD Led Display 4000HZ Refresh No Noise Large Scale TV Led TV Wall supplier 14 Bits Brightness 1000nits 4K UHD Led Display 4000HZ Refresh No Noise Large Scale TV Led TV Wall supplier

Large Image :  14 Bits Brightness 1000nits 4K UHD Led Display 4000HZ Refresh No Noise Large Scale TV Led TV Wall

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Zhongyi
Certification: CE / RoHS / FCC / ETL / TUV
Model Number: ZNI25

Payment & Shipping Terms:

Minimum Order Quantity: 1 cabinet
Price: negotiatioin
Packaging Details: Plywood or Flight cases, 6 pcs in a flight cases(Recommend)
Delivery Time: 28-32 working days after receiving your prepayment
Payment Terms: 30% T/T prepayment, 70% T/T balance before shipment
Supply Ability: 3000 squaremeter per month
Contact Now
Detailed Product Description

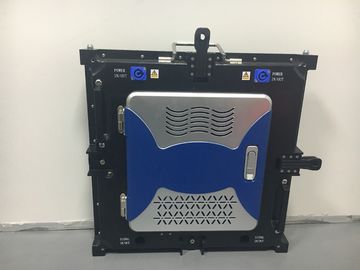

Cabinet: 480*480mm Brightness: 1000nits
Refresh: 40000HZ Led Chip: Epistar
LED Lamp: SMD2020 Or SMD1515 IC: MBI5153
Power Supplier: G-energy Or Chuanglian Connector: Neutrik
Cabinet Materials: Die-casting Cabinet Weight: 7.5 Kg Per Piece
Packing: Flight Case Warranty: 2-3 Years
IP: IP30

14 Bits Brightness 1000nits 4K UHD Led Display 4000HZ Refresh No Noise Large Scale TV Led TV Wall

Quick details
Neutrik Connector
6 layers PCB 2.0mm thickness
Nationstar led lamp SMD2020
MBI Ic from Taiwan
CE Power supplier 5V 60A
Classical design and natural tech., reliable quality and great performance.
Seamless connecting tech., screen flatness error <0.1mm.
Patented mask, eliminating the dark spots, improving consistency and viewing angle.

Detailed Specifications:
1. With pure golden wire connection in LED - Nationstar
2. Grand A row material for module frame and mask
3. 6 layers PCB and copper plating thickness > 18mil
4. Stainless steel screws when assembly
5. Disassembly and assembly are quick and easy
6. 3 to 5 years warranty
7 .Energy-saving 60% : driving with low frequency current, heat-dissipated roller fans with automatic temperature-controlling device.

Ultra HD Narrow pixel pitch led screen are a trend in future, as led technology has been developped and revolution. Ultra HD p2.5 led screen is most hotseller in the market. We use best Epistar led chip and MBI high refresh IC, so that there is high grey 16 bits and no defective rate.

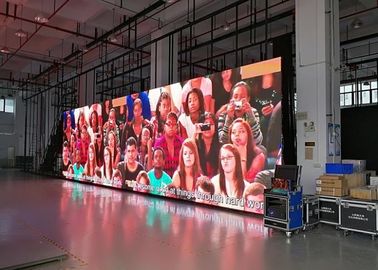

Now P2.5 ultra hd narrow pixel pitch led screens are widely used for Tv station ,conference and monitoring room...Also LED screen has its advantages like high brightness, good uniformity and grey,high contrast which beat DLP,LCD..


UHD-P2.5
ITEMP2.5
Pixel Pitch(㎜)2.5
Pixel Density(pixel/㎡)160000
Pixel Component1R1G1B
LED ConfigurationSMD2020
Panel Dimension(W×H)㎜160*160
Scan Mode1/32
Cabinet Dimension(W×H)㎜480*480
Cabinet MaterialDie-casting Aluminum
Cabinet Weight(㎏)7.0
Brightness(cd/㎡)≥1000( Color Temperature6500K)
Color Temperature3200K-9500K
Viewing Angle(V)160°
Viewing Angle(H)160°
Contrast Ratio3000:1
Max Power Consumption(w/㎡)800
Ave Power Consumption(w/㎡)480
Operating Power SourceAC85~264V(47-63Hz)
Frame Frequency(Frame/S)60
Refresh Rate(Hz)≥1920
Gray LevelRGB65536Grade
Brightness Adjustment Level256Grade
Brightness Adjustment ModeManual/Automatic/Programmable
Control DistanceUTP<100m;Muti Mode Fiber<500m;Single Mode Fiber<10Km
Operating Temp﹣20℃-﹢50℃
Operating Humidity10%-90%RH
MTBF>50000h
LEDLife Span>100000h
LEDBest View distance5m-150m



Our Service:
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.

In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.

After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
